型号Model

SW10530MP10IR

像机尺寸Image Size

1/1.2-inch

焦距Focal length

105mm

光圈范围F No.

F3

最短物距M.O.D(m)

5-Inf.

控制方式Operation

Iris

Fix固定

Focus

Manual手动调整

视场角Horizontal Angle of View

1/1.2" Type

7.05°x5.65°x4.25°

2/3"Type

5.98°x4.79°x3.6°

1/1.8"Type

4.9°x3.9°x2.9°

畸变Distortion

1/1.2" Type

0.36%

后焦距Back focal length

59.04mm

法兰距Flange FL

17.526mm

接口Mount

C-Mount

近摄视野Object Dimension (mm) WD=5m

540.0x337.5mm

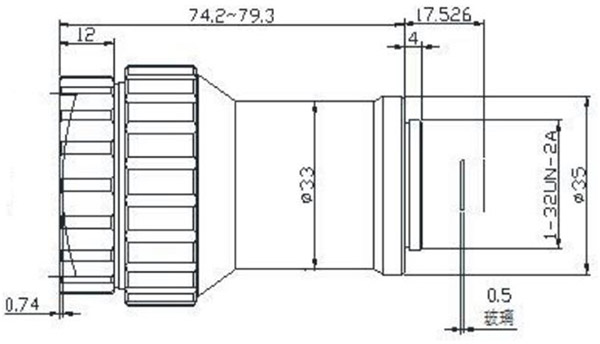

外形尺寸Dimension

Ф47x79.3mm

重量Weight

172.0g

光学波长optical wavelength

450~1050nm

滤镜尺寸Filter Thread

-

工作温度Working Temperature

-20ºC ～ +60ºC
