500万像素工业镜头9mm 2/3” C Mount

型号Model

LM0920MP5

像面大小Image circle

2/3-inch (Φ11)

焦距Focal length

9mm

光圈范围F No.

F2.1-22

最短物距M.O.D(m)

0.25-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3"Type

63.5°×52.5°×40.5°

1/2"Type

48.3°×39.4°×30.0°

1/3"Type

37.0°×30.0°×22.7°

近摄视野FOV

2/3"Type

242.5x202.87mm

畸变Distortion

-0.85%

后焦距Back focal length

10.398mm

法兰后焦Flange Back Focal Length

17.526mm

接口Mount

C-Mount

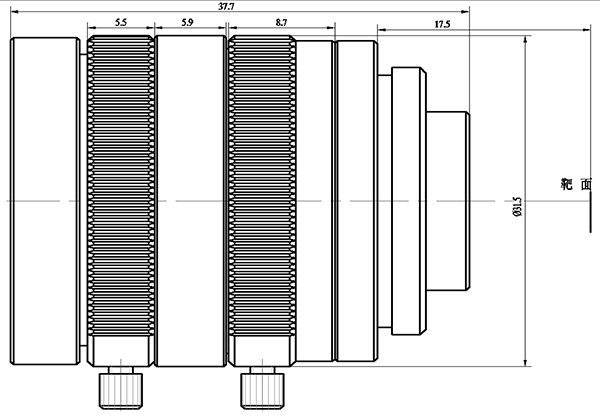

外形尺寸Dimension

Φ31.5×37.7mm

重量Weight

62.7g

滤镜尺寸Filter Thread

M29.5*P0.5

工作温度Working Temperature

-20ºC ～ +60ºC
