1.2-inch C-mount Lens
ZLKC LENS pushes out a SK-MP25 new series lenses, 1.2" 25MP FA Lenses, And its focal length covers 12mm, 16mm, 25mm, 35mm, and 50mm. With Ultra high resolution and Excellent optical properties and compact structure, These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, PCB inspection, biology, medicine,postal sorting and inspections of printed images 3C, machine and other fields.
Image Size
Focal length
Mount
Resolution
Product search
1.2-inch C-mount Lens
Picture Model Image Size Focal length Mount Resolution F No. Distortion
SK1224MP25 1.2"12mmC-Mount25MP(1.1'')F2.40.39%

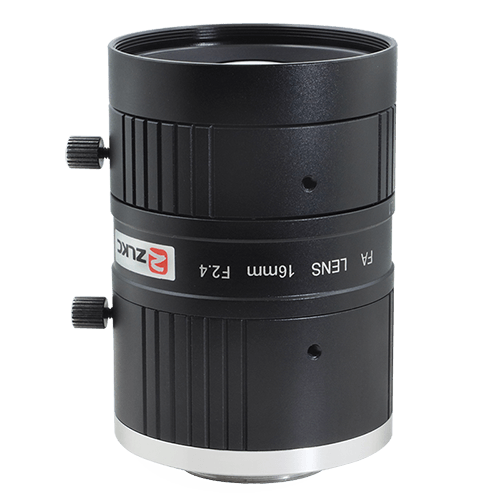

SK1624MP25 1.2"16mmC-Mount25MP(1.1'')F2.40.07%

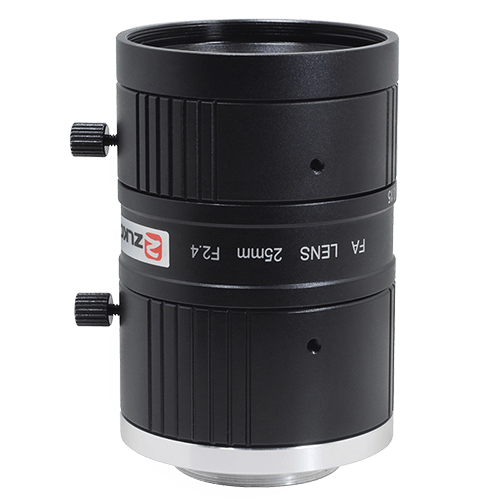

SK2524MP25 1.2"25mmC-Mount25MP(1.1'')F2.40.04%

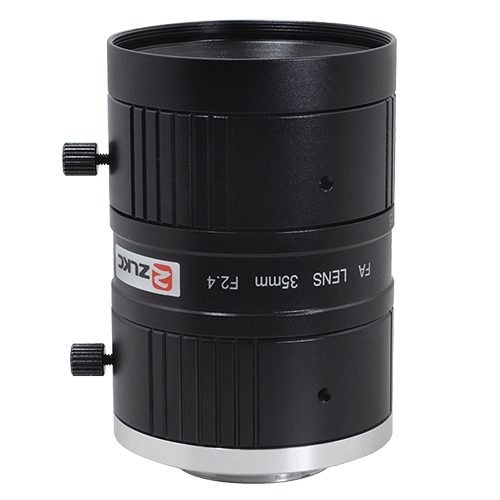

SK3524MP25 1.2"35mmC-Mount25MP(1.1'')F2.40.015%
SK5024MP25 1.2"50mmC-Mount25MP(1.1'')F2.40.011%
firstprev 1 last
Picture Model Image Size Focal length
SK1224MP25 1.2" 12mm
SK1624MP25 1.2" 16mm
SK2524MP25 1.2" 25mm
SK3524MP25 1.2" 35mm
SK5024MP25 1.2" 50mm
