1.1-inch C-mount Lens Product screening

1.1-inch C-mount Lens: 1.1″ C-Mount F2.8; FL12, 16, 25, 35, 50mm Lens Series; Ultra-High Resolution 20MP; Low distortion,Excellent image uniformity; Metal structure，compact appearance; Used in Industrial Camera,ITS Camera

Image Size

Focal length

Mount

Resolution

Product search

1.1-inch C-mount Lens

Picture	Model	Image Size	Focal length	Mount	Resolution	F No.	Distortion

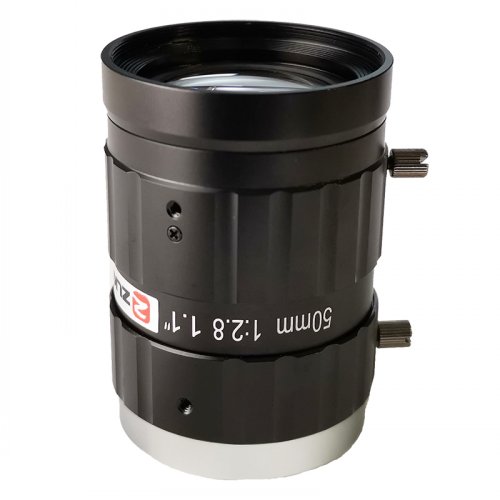

	HK1228MP20	1.1''	12mm	C-Mount	20MP(1''4/3'')	F2.8	<1%
	HK1628MP20	1.1''	16mm	C-Mount	20MP(1''4/3'')	F2.8	<0.3%
	HK2528MP20	1.1''	25mm	C-Mount	20MP(1''4/3'')	F2.8	<0.1%
	HK3528MP20	1.1''	35mm	C-Mount	20MP(1''4/3'')	F2.8	<0.01%
	HK5028MP20	1.1''	50mm	C-Mount	20MP(1''4/3'')	F2.8	<0.02%

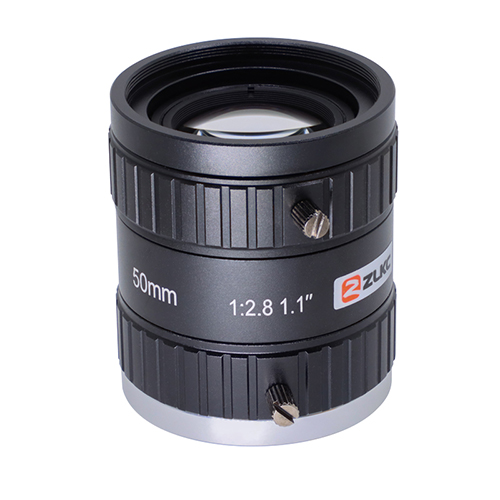

	FK1228MP20	1.1''	12mm	C-Mount	20MP(1''4/3'')	F2.8
	FK1628MP20	1.1''	16mm	C-Mount	20MP(1''4/3'')	F2.8	-0.73%
	FK2528MP20	1.1''	25mm	C-Mount	20MP(1''4/3'')	F2.8	-0.59%
	FK3528MP20	1.1''	35mm	C-Mount	20MP(1''4/3'')	F2.8	-0.37%
	FK5028MP20	1.1''	50mm	C-Mount	20MP(1''4/3'')	F2.8	-0.05%

first prev 1 next last

Picture	Model	Image Size	Focal length
	HK1228MP20	1.1''	12mm
	HK1628MP20	1.1''	16mm
	HK2528MP20	1.1''	25mm
	HK3528MP20	1.1''	35mm
	HK5028MP20	1.1''	50mm
	FK1228MP20	1.1''	12mm
	FK1628MP20	1.1''	16mm
	FK2528MP20	1.1''	25mm
	FK3528MP20	1.1''	35mm
	FK5028MP20	1.1''	50mm

first prev 1 next last
