    FA Lens HM3514MP3 35mm Manual Iris Machine Vision Lens 2/3-inch F1.4 100lp/mm C-Mount
    2/3″C-Mount f=35mm F1.4
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in Industrial Camera,ITS Camera
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=35mm
    ◆ F No.：F1.4-C
    ◆ Features：2/3-inch 35mm 100lp/mm Manual Iris Lens  FA  Lens C Mount HD Lens

    ※ Model
    HM3514MP3

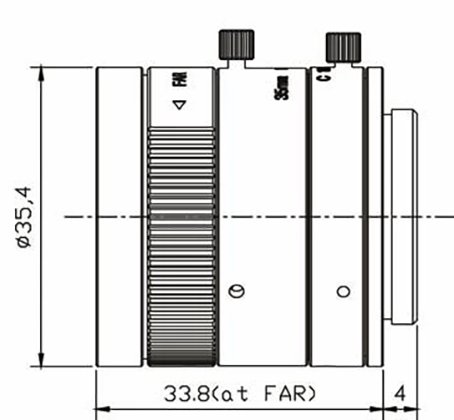

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HM3514MP3

    Image Size

    2/3-inch

    Focal length

    35mm

    F No.

    F1.4-C

    M.O.D(m)

    0.2-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    17.8°×14.2°×10.8°

    1/2"Type

    12.9°×10.4°×7.8°

    Distortion

    2/3"Type

    -0.30%@y=5.5mm

    1/2"Type

    -0.10%@y=4.0mm

    Back focal length

    14.70mm

    Mount

    C-Mount

    Object Dimension (mm) WD=300mm

    94.4x75.2x56.2mm

    Dimension

    Ф35.4x33.8mm

    Weight

    92.0g

    Horizontal Resolution

    100lp/mm

    Entrance Pupil Diameter

    25mm

    Filter Thread

    M30.5x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    HM3514MP3 Specifications
