1″ C Mount f=16mm F1.6
High resolution ,excellent image uniformity
high contrast,Can suppress stray light
Low distortion,High measurement accuracy
Locking set screws for focus and Iris
compact appearance for device integration
※ Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on
|
Model |
HK1616MP5 |
|
|
Image Size |
1-inch |
|
|
Focal length |
16mm |
|
|
F No. |
F1.6-22 |
|
|
M.O.D(m) |
0.3-Inf. |
|
|
Operation |
Iris |
Manual |
|
Focus |
Manual |
|
|
Horizontal Angle of View |
1"Type |
54.2°×44.1°×33.6° |
|
2/3"Type |
38.3°×30.8°×23.2° |
|
|
1/2"Type |
28.2°×22.5°×16.9° |
|
|
Distortion |
1"Type |
-2.30% |
|
1/2"Type |
-1.0% |
|
|
Back focal length |
12.17mm |
|
|
Mount |
C-Mount |
|
|
1"FOV |
824mm×611mm(WD=1000mm) |
|
|

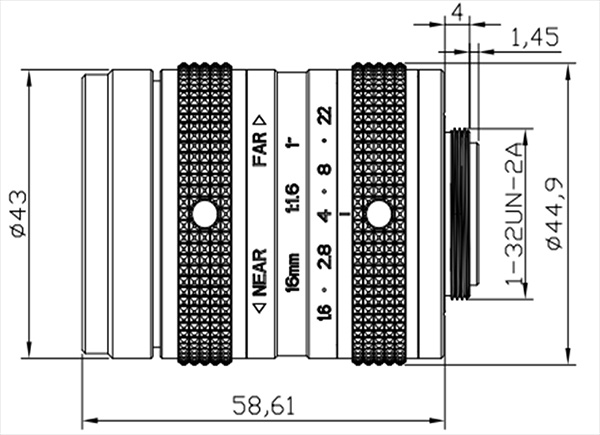

Dimension |
Ф41.5x58.61mm |
|
|
Weight |
210.0g |
|
|
Horizontal Resolution |
150lp/mm |
|
|
Filter Thread |
M37.5x 0.5 |
|
|
Working Temperature |
-20ºC ～ +60ºC |
|
