Narrow Bandpass Filter VM-NP850: 品牌：ZLKC(中联科创); 材质：光学级别玻璃; 颜色：银白色(按要求); 截止深度:>OD4,透过率>96%; 中心波长：850±2nm; 带宽：20nm; 截止波段：200-1100nm; 适用工业镜头、视觉检测项目

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ 规格特性
品牌：ZLKC(中联科创)
材质：光学级别玻璃
颜色：银白色(按要求)

截止深度:>OD4,透过率>96%
中心波长：850±2nm
带宽：20nm
截止波段：200-1100nm

适用工业镜头、视觉检测项目

※ 订货型号
VM-NP850

※ 应用场景
适用于电子、汽车、白色家电、食品饮料、医药等高精确测量、检测、识别的工业机器视觉和图像处理系统中,适合恶劣环境

VM-NP850窄带滤光片只允许850nm的红外波段高透通过，截止偏离850nm两侧的波段，在很多应用中也可以当做红外透过滤光片使用。

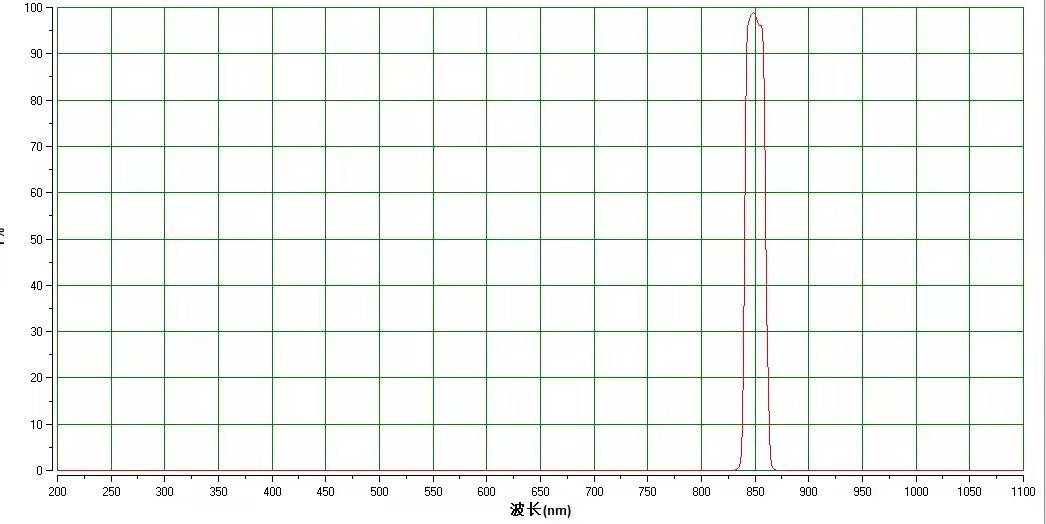

VM-NP850 Specifications
