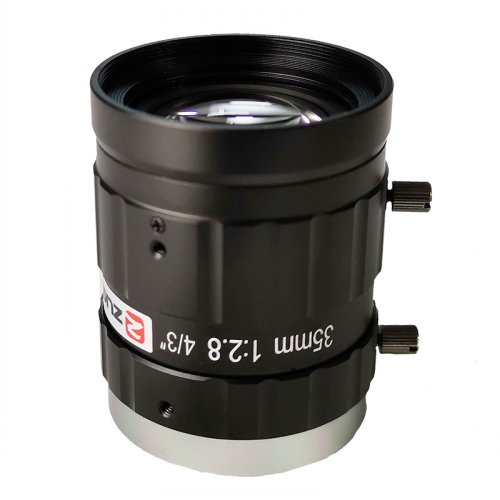

4/3" 20MP 35mm FA Lens C Mount |
Working Distance |
Optical Magnification |
4/3"Field of View(mm) |
|||
Model |
KM3528MP20 |
mm |
X |
H |
V |
|
Image Size |
4/3-inch |
5000 |
0.0069X |
2532.7 |
1903.1 |
|
Focal length |
35mm |
2000 |
0.0174X |
1010.5 |
759.1 |
|
F No. |
F2.8-22 |
1000 |
0.0349X |
627.8 |
378.0 |
|
M.O.D(m) |
0.2-Inf. |
900 |
0.0388X |
452.6 |
339.9 |
|
Operation |
Iris |
Manual |
800 |
0.0437X |
401.9 |
301.8 |
Focus |
Manual |
700 |
0.0500X |
351.2 |
263.7 |
|
Angle of View (D×H×V) |
34.9°×27.9°×20.9° |
600 |
0.0585X |
300.6 |
225.6 |
|
1" |
25.8°×20.6°×15.5° |
550 |
0.0639X |
275.3 |
206.6 |
|
2/3" |
17.8°×14.3°×10.7° |
500 |
0.0703X |
250.0 |
187.6 |
|
Distortion |
<0.01% |
450 |
0.0783X |
224.7 |
168.7 |
|
BFL |
22.9mm |
400 |
0.0882X |
217.8 |
163.4 |
|
Mount |
C-Mount |
350 |
0.1010X |
199.5 |
149.7 |
|
Object Dimension |
149.2mm×111.9mm(WD=300mm) |
300 |
0.1181X |
149.2 |
111.9 |
|

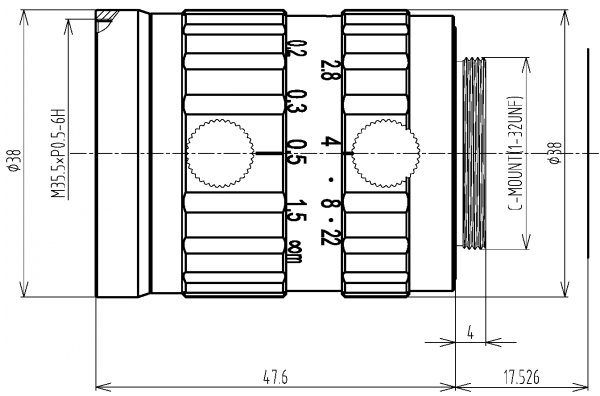

Dimension |
Φ38×47.6mm |
250 |
0.1421X |
124.1 |
93.0 |
|
Weight |
111.0g |
200 |
0.1805X |
97.7 |
73.2 |
|
Filter Thread |
M35.5x 0.5 |
- |
- |
- |
- |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
