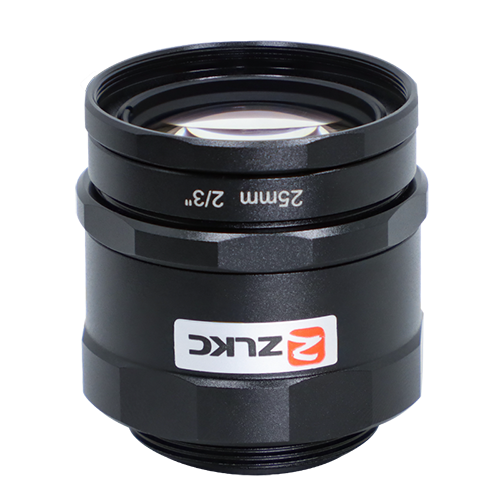

Anti-vabration lens 25mm C-Mount

Working Distance

Magnification

2/3"Field of View(mm)

Model

AM2514MP5

mm

-

H

V

Image Size

2/3-inch

900

0.028X

317.5

237.7

Focal length

25mm

850

0.029X

299.9

224.5

F No.

F1.4(Opitonal2.8/4/8/14/15/16)

800

0.031X

282.3

211.3

M.O.D(m)

0.1-Inf.

750

0.033X

264.6

198.1

Operation

Iris

Fix

700

0.036X

247.0

184.9

Focus

Manual

650

0.039X

229.4

171.6

Angle of View

(D×H×V)

2/3"

24.8°×20.0°×15.0°

600

0.042X

211.8

158.4

1/2"

18.1°×14.5°×11.1°

550

0.046X

194.1

145.2

Distortion

<0.05%

500

0.050X

176.5

132.0

BFL

12.25mm

450

0.056X

158.9

118.8

Mount

C-Mount

400

0.063X

141.2

105.6

Object Dimension

108.0mm×82.0mm (WD=300mm)

350

0.072X

123.6

92.4

Dimension

Φ32.8×30.77mm

300

0.084X

108.0

82.0

Weight

67.9g

250

0.100X

88.3

66.0

Front / Rear Effective Dia(mm)

Front Φ22.7 Rear Φ12.6

200

0.126X

70.7

52.7

Filter Thread

M30.5x 0.5

150

0.168X

53.0

39.5

Working Temperature

-20ºC ～ +60ºC

100

0.253X

35.3

26.3
