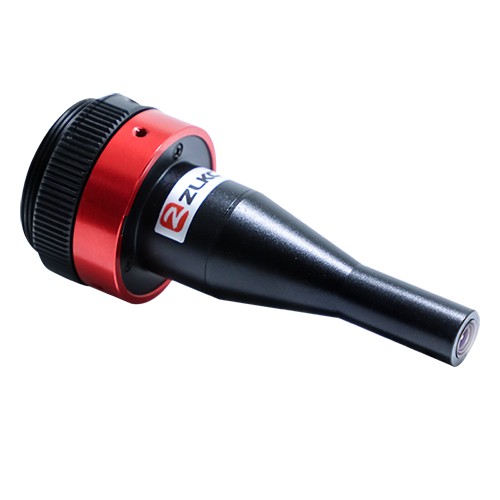

中联科创高分辨率内壁检测镜头RV220MP5I 1/1.8英寸C口 360° 内孔成像镜头: 规格：1/1.8″C型; 采用最新光学设计，大景深; 内孔外部检测无需延伸入小孔; 超宽视角178°将整个内孔展现为平面; 内孔侧面与底面都具有同等清晰高分辨率; 适用于筒状、内孔、螺纹等物体内部检测

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ 规格特性
◆ 品牌：ZLKC(中联科创)
◆ 规格接口：1/1.8″ C型
◆ 像圆：Φ5.4mm
◆ 工作距离：5-70mm
◆ 镜头种类：360° 成像镜头（外壁检测） 1/1.8" C口

※ 订货型号
RV220MP5I

※ 外形尺寸

※ 应用场景
广泛应用于工业检测、容器内壁、塑料盖、半导体、瓶颈、螺丝和带孔物体等领域，这款镜头可以适用于较大范围直径和厚度的物体，是筒状、内孔、螺纹等物体内部多种形状物体检测的完美解决方案。

型号Model	RV220MP5I
CCD尺寸Image Size	1/1.8-inch
像圆Image Circle	Φ5.4
光圈范围F No.	F2.8-16
工作距离 WD (mm)	5-70mm
视场角Horizontal Angle of View	178°×178°×178°
分辨率Resolution	10Mega Pixel
波长范围Wavelength Range	450-800
接口Mount	C-Mount
法兰后焦距Flange BFL	17.526mm
外形尺寸Dimension	Ф17x64mm
工作温度Working Temperature	-20ºC ～ +60ºC

RV220MP5I Specifications
