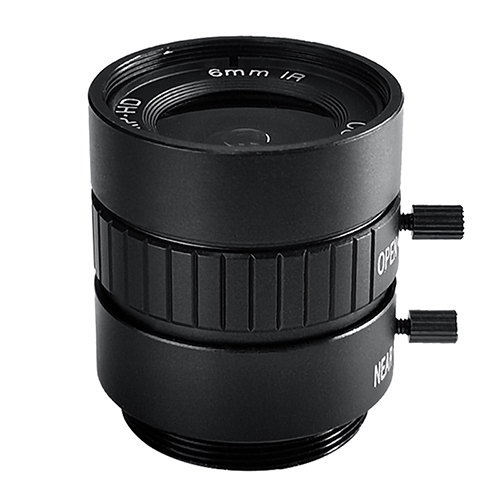

    CS-Mount Lens VM0612MPC 6mm Manual Iris Lens 1/2-inch 3MP
    1/2″ CS 6mm
    Can suppress stray light
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in CS-Mount Camera.
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2″ C-mount
    ◆ Focal length：f=6mm
    ◆ F No.：F1.6-C
    ◆ Features：1/2-inch 6mm 3MP Manual Iris Lens CS Mount HD Lens

    ※ Model
    VM0612MPC

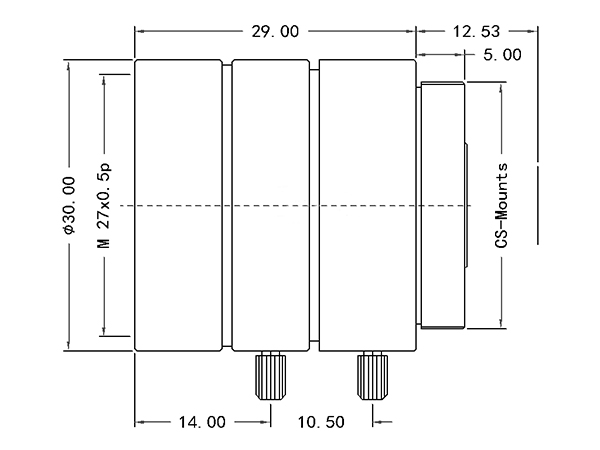

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM0612MPC

    Image Size

    1/2-inch

    Focal length

    6mm

    F No.

    F1.6

    M.O.D(m)

    0.25m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1/3" Type

    43.5°x33.2°

    1/2" Type

    56.2°x43.5°

    Distortion

    1/2"Type

    -1.8%

    Back focal length

    12.53mm

    Filter

    M27 P=0.5mm

    Mount

    CS-Mount

    Dimension

    Ф30x29mm

    Weight

    54.0g

    Remark

    3MP LENS

    VM0612MPC Specifications
