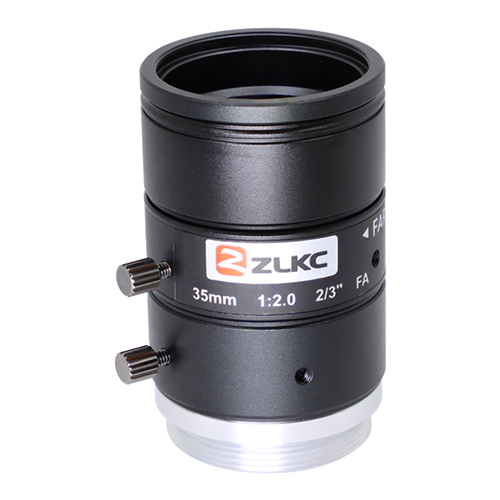

10MP Low distance lens 35mm 2/3”C Mount

Model

LM3520MP10

Image circle

2/3-inch (Φ11.4)

Focal length

35mm±5%

F No.

F2.0-16

M.O.D(m)

0.2-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

16.5°×12.8°×10.7°

1/1.8"Type

13.5°×11.7°×7.4°

1/2"Type

12.1°×9.6°×7.2°

Distortion

At MOD.

-0.03%

Back focal length

14.39mm

Flange Back Focal Length

17.526mm

Mount

C-Mount

Relative Illumination

71%

CRA

8.5°

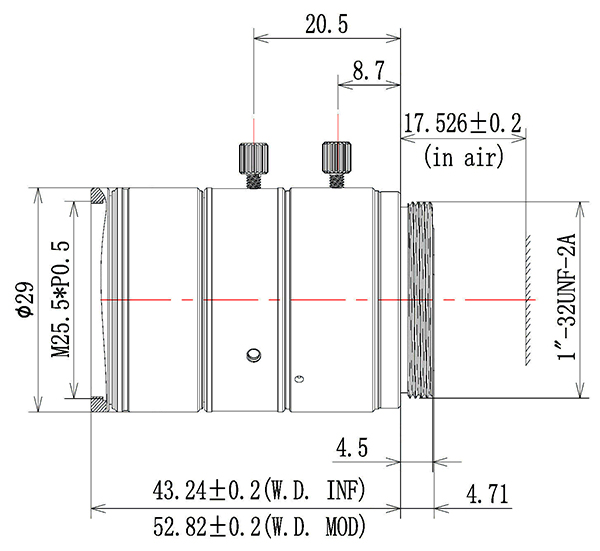

Dimension

Ф29x43.24mm

Weight

66.8g

Lens structure

5groups，8elements

Filter Thread

M25.5*P0.5

Working Temperature

-20ºC ～ +60ºC
