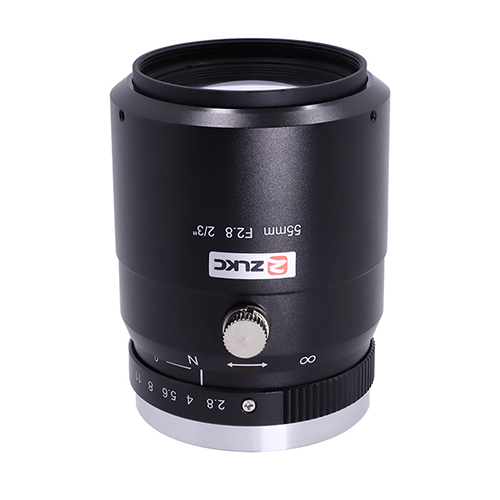

    5.0 mega-pixels 2/3-inch Marco Lens(Telecentric lens) TM5528MP5 55mm C-Mount
    2/3″C-Mount 55mm 12MP
    Ultra-low object distance
    Can suppress stray light
    Low distortion,High resolution
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：2/3" C-Mount
    ◆ Focal length：f=55mm
    ◆ F No.：F2.8
    ◆ Features：55mm 2/3-inch Marco Lens(Telecentric lens)  C-Mount lens

    ※ Model
    TM5528MP12

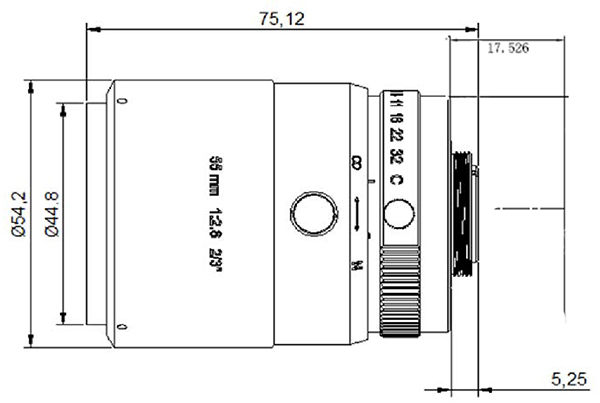

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    Model

    TM5528MP5

    Image Size

    2/3-inch

    Focal length

    55mm

    F No.

    F2.8-C

    M.O.D(m)

    0.12-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3" Type

    11.6°×9.3°×6.9°

    1/2"Type

    8.5°×6.8°×5.0°

    1/3"Type

    6.4°×5.1°×3.8°

    Distortion

    4.2%@y=5.5㎜;0.16%@y=3.0㎜

    Back focal length

    13.21mm

    Mount

    C-Mount

    2/3"FOV

    17.2×12.8mm (WD=120mm)

    Dimension

    Ф54.2x75.12mm

    Weight

    337.0g

    Horizontal Resolution

    200lp/mm

    Filter Thread

    M43x 0.75mm

    Working Temperature

    -20ºC ～ +60ºC

    TM5528MP5 Specifications
