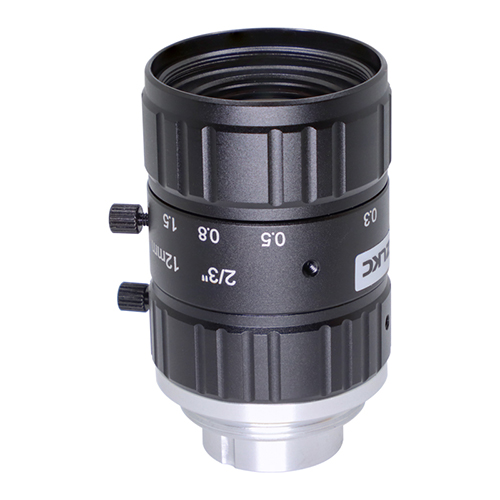

    8MP Lens VM1228MP8 12mm Manual Iris 2/3-inch F2.8 C-Mount
    2/3″C-Mount f=12mm F2.8
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure,compact appearance
    Used in Industrial Camera,ITS Camera
    Product Features
    Brand:ZLKC
    ◆ Image Size:2/3″ C-mount
    ◆ Focal length:f=12mm
    ◆ F No.:F2.8-16
    ◆ Features:2/3-inch 12mm Manual Iris Lens  FA  Lens C Mount HD Lens

    Model
    VM1228MP8

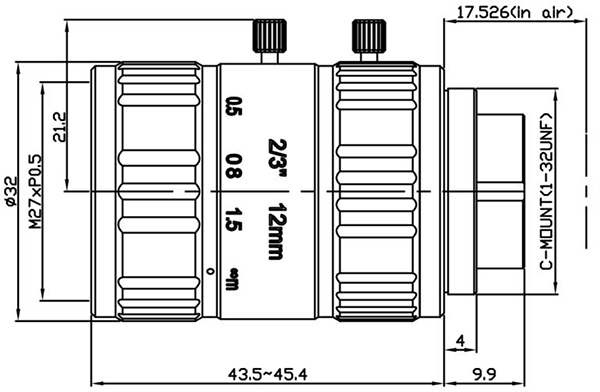

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,traffic cameras and so on

    8MP 12mm FA Lens C Mount

    Working Distance

    Magnification

    2/3"Field of View(mm)

    Model

    VM1228MP8

    mm

    -

    H

    V

    Image Size

    2/3-inch

    1000

    0.012X

    733.3

    550.0

    Focal length

    12mm

    900

    0.013X

    660.0

    495.0

    F No.

    F2.8-16

    850

    0.014X

    623.3

    467.5

    M.O.D(m)

    0.1-Inf.

    800

    0.015X

    586.7

    440.0

    Operation

    Iris

    Manual

    750

    0.016X

    550.0

    412.5

    Focus

    Manual

    700

    0.017X

    513.3

    385.0

    Angle of View

    (D×H×V)

    2/3"

    40.3°×30.8°

    650

    0.018X

    476.7

    357.5

    1/1.7"

    34.8°×26.5°

    600

    0.020X

    440.0

    330.0

    1/1.8"

    33.0°×24.9°

    550

    0.022X

    403.3

    302.5

    1/2"

    29.9°×22.6°

    500

    0.024X

    366.7

    275.0

    TV Distortion

    -0.20%

    450

    0.027X

    330.0

    247.5

    Flange FL

    17.526mm

    400

    0.030X

    293.3

    220.0

    Mount

    C-Mount

    350

    0.034X

    256.7

    192.5

    2/3"FOV

    73.3cm×55.0cm(WD=100mm)

    300

    0.040X

    220.0

    165.0

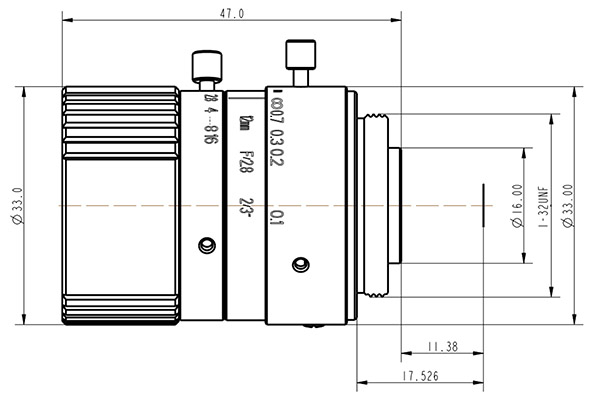

    Dimension

    Φ32×43.5mm

    250

    0.048X

    183.3

    137.5

    Weight

    78.8g

    200

    0.060X

    146.7

    110.0

    Resolution

    8MP

    180

    0.067X

    132.0

    99.0

    Filter

    M27 P=0.5mm

    150

    0.080X

    110.0

    82.5

    Working Temperature

    -20ºC +60ºC

    100

    0.120X

    73.3

    55.0

    VM1228MP8 Specifications
