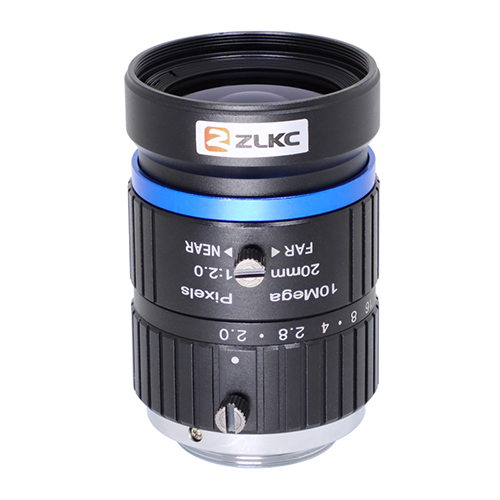

    1-inch FA Lens HM2020MPC 20mm 10MP C-Mount
    1″ C Mount f=20mm F2.0
    High resolution ,excellent image uniformity
    high contrast,Can suppress stray light
    Low distortion,High measurement accuracy
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=20mm
    ◆ F No.：F2.0
    ◆ Features：1-inch 20mm 10MP Manual Iris Lens,  F2.0 Fixed focus Lens C Mount HD Lens

    ※ Model
    HM2020MPC

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HM2020MPC

    Image Size

    1-inch

    Focal length

    20mm

    F No.

    F2.0-C

    M.O.D(m)

    0.15m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    30.4°x25.2°

    2/3"Type

    30.0°x17.4°

    1/1.8"Type

    24.5°x14.2°

    Mount

    C-Mount

    TV Distortion

    -0.05%

    Dimension

    Ф37x51.8mm

    Weight

    126.0g

    Filter

    M34 P=0.5mm

    Remark

    10MP HD LENS

    HM2020MPC Specifications
