800万像素8mm FA低畸变镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3" Field of View(8.45*7.07mm)

型号Model

LM0828MP8

mm

X

H

V

像机尺寸Image Size

Φ11mm(2/3")

∞

-

-

-

焦距Focal length

8mm

1000

0.0079X

1076.05

901.889

光圈范围F No.

F2.8-16

900

0.0870X

970.56

813.432

最短物距M.O.D(m)

0.1-Inf.

800

0.0098X

865.071

727.974

控制方式Operation

Iris

Manual手动调整

700

0.0112X

759.582

636.516

Focus

Manual手动调整

650

0.0120X

706.838

592.287

视场角(D*H*V)

Angle of View

2/3"

68.45°×54.96°×47.05°

600

0.0130X

654.094

548.058

畸变Distortion

<0.28%

550

0.0141X

601.350

503.830

光学后焦BFL

10.39mm

500

0.0155X

548.606

459.601

法兰后焦Flange BFL

17.526mm

450

0.0171X

495.862

415.373

接口Mount

C-Mount

400

0.0192X

443.118

371.144

最大主光线夹角CRA

12.2°

350

0.0218X

390.375

326.916

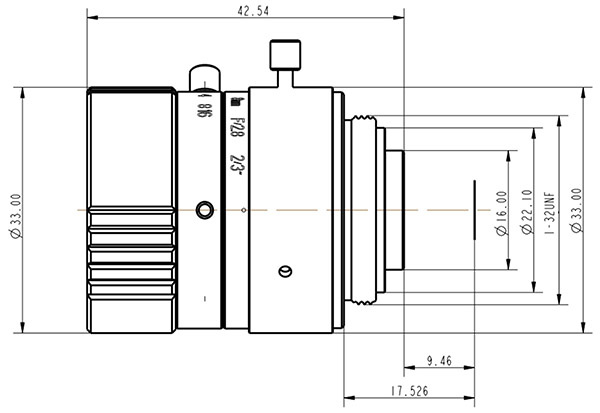

外形尺寸Dimension

Φ33×34.57mm

300

0.0252X

337.631

282.688

重量Weight

64.5g

250

0.0299X

284.889

238.461

分辨率Resolution

8MP

200

0.0367X

232.148

194.235

滤镜尺寸Filter Thread

M30.5x 0.5

150

0.0476X

179.408

150.010

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.0677X

126.673

105.790
