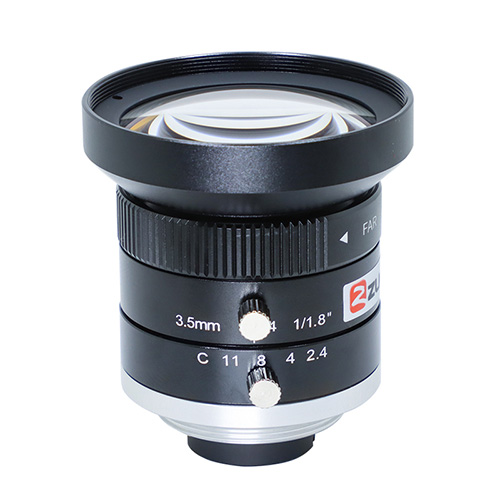

广角镜头3.5mm低畸变FA镜头C Mount

型号Model

HM035MP2

像机尺寸Image Size

1/1.8-inch

焦距Focal length

3.5mm

光圈范围F No.

F2.4-C

最短物距M.O.D(m)

0.1-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角

Angle of View

(D×H×V)

1/1.8"

104.5°×94.3°×78.0°

1/2"

99.6°×87.9°×71.1°

1/3"

84.2°×71.1°×55.6°

畸变Distortion

-1.23%

光学后焦BFL

8.57mm

接口Mount

C-Mount

近摄视野Object Dimension

1/1.8"

350.5mm×261.3mm(WD=150mm)

1/2"

312mm×230.5mm(WD=150mm)

1/3"

230.5mm×170mm(WD=150mm)

外形尺寸Dimension

Φ42×37.7mm

重量Weight

130g

分辨率Horizontal Resolution

100lp/mm

滤镜尺寸Filter Thread

M40.5*0.5

工作温度Working Temperature

-20ºC ～ +70ºC
