    ZLKC Lens VM16048MPC 16-48mm 3Megapixel Manual Iris Lens, 2/3” Vari-focal HD Lens FA Lens C Mount
    2/3″C-Mount 16-48mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=16-48mm
    ◆ F No.：F2.0-C
    ◆ Features：2/3" 16-48mm 3Megapixel Manual Iris Lens Vari-focal  Lens C Mount HD Lens

    ※ Model
    VM16048MPC

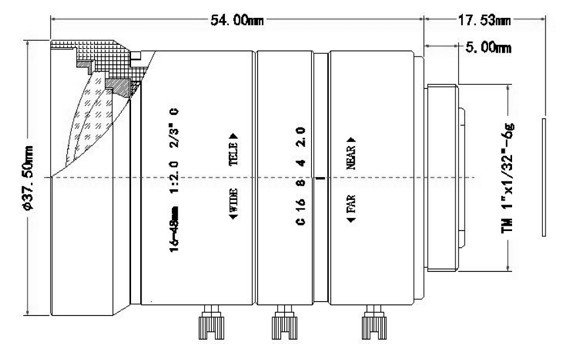

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM16048MPC

    Image Size

    2/3-inch

    Focal length

    16-48mm

    F No.

    F2.0-C

    M.O.D(m)

    0.2-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    30.2°× 10.8°

    1/2"Type

    21.8°× 8.6°

    Distortion

    2/3"Type

    -0.30%～-0.05%

    1/2"Type

    -0.15%～-0.02%

    Back focal length

    12.50mm

    Mount

    C-Mount

    Dimension

    Ф37.5x54mm

    Weight

    105.0g

    Horizontal Resolution

    100lp/mm

    Filter Thread

    M35.5x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    VM16048MPC specification
