    ZLKC Lens VM04018MPIR Manual Iris Lens 3 Megapixel 4-18mm, 1/1.8” IR CCTV Lens C Mount
    1/1.8″C-Mount 4-18mm F1.6
    IR Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=4-18mm
    ◆ F No.：F1.6-C
    ◆ Features：1/1.8-inch 4-18mm 3 Megapixel Manual Iris Lens  FA  Lens C Mount HD Lens

    ※ Model
    VM04018MPIR

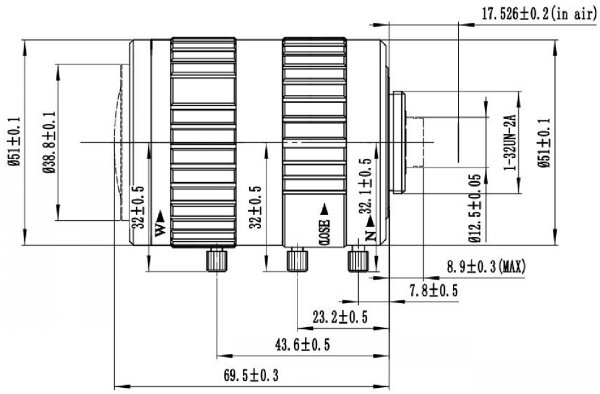

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM04018MPIR

    Image Size

    1/1.8-inch

    Focal length

    4-18mm

    F No.

    F1.6-C

    M.O.D(m)

    0.15m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/3"Type

    -2%@wide

    1/1.8"Type

    -3%@wide

    Horizontal Angle of View

    1/1.8"Type

    137°×19.8°

    Mount

    C-Mount

    Dimension

    Ф52x72.1mm

    Weight

    247.0g

    Remark

    3MP HD CCTV LENS

    VM04018MPIR Specifications
