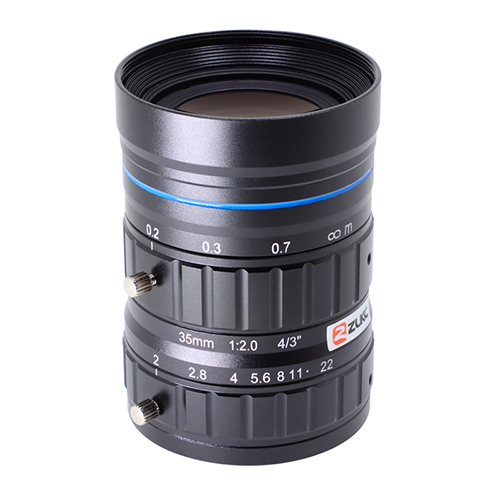

    12MP FA Lens KM3520MP12 35mm Large Format Sensor 4/3-inch F2.0 C-Mount
    4/3″ C-Mount f=35mm F2.0
    Ultra-High Resolution 12MP
    Low distortion,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：4/3″ C-mount
    ◆ Focal length：f=35mm
    ◆ F No.：F2.0-22
    ◆ Features：4/3-inch Large Format Lens 35mm C Mount 12MP Manual Iris Lens

    ※ Model
    KM3520MP12

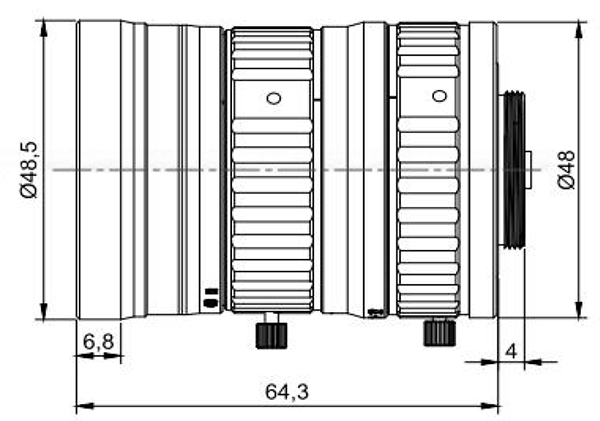

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    KM3520MP12

    Image Size

    4/3-inch

    Focal length

    35mm

    F No.

    F2.0-22

    M.O.D(m)

    0.2-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    4/3"  Type

    36.8°×30.1°×22.5°

    1"Type

    26.1°×21.4°×15.9°

    1/2"Type

    13.2°×10.6°×7.9°

    Distortion

    -0.52%@y=11.5㎜;-0.12%@y=4㎜

    Flange BFL

    17.526mm

    Back focal length

    18mm

    Mount

    C-Mount

    4/3"FOV

    96.7mm×72.4mm(WD=200mm)

    Dimension

    Ф48.5x64.3mm

    Weight

    212.5g

    Filter Thread

    M46x 0.75mm

    Working Temperature

    -20ºC ～ +60ºC

    KM3520MP12 specification
