Model |

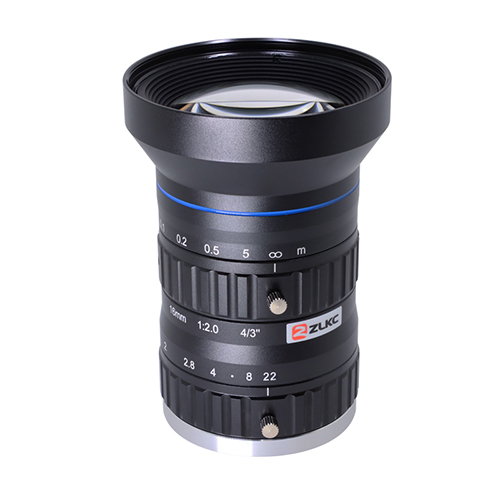

KM1620MP12 |
|
Image Size |
4/3-inch |
|
Focal length |
16mm |
|
F No. |
F2.0-22 |
|
M.O.D(m) |
0.1-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
4/3" Type |
73.1°×61.2°×47.3° |
1"Type |
54.2°×44.3°×34.3° |
|
1/2"Type |
28.3°×22.7°×17.1° |
|
Distortion |
-1.91%@y=11.5㎜;-0.55%@y=4㎜ |
|
Flange BFL |
17.526mm |
|
Back focal length |
21mm |
|
Mount |
C-Mount |
|
4/3"FOV |
145.5mm×107.3mm(WD=100mm) |
|
Dimension |
Ф60.2x85.9mm |
|
Weight |
355.0g |
|
Filter Thread |
M58x 0.75mm |
|
Working Temperature |
-20ºC ~ +60ºC |
