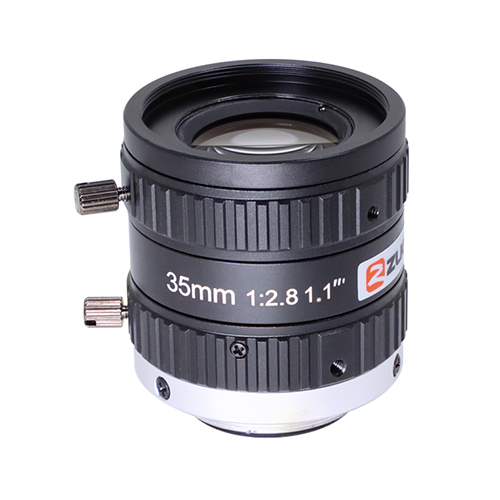

Model |
FK3528MP20 |
|
Image Size |
1.1-inch |
|
Focal length |
35mm |
|
F No. |
F2.8-22 |
|
M.O.D(m) |
0.2-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
1.1" Type |
28.2°×22.5°×16.9° |
1"Type |
26.1°×20.8°×15.7° |
|
1/2"Type |
13.3°×10.7°×7.9° |
|
1/3"Type |
9.9°×7.9°×6.0° |
|
Distortion |
-0.37%@y=8.8㎜;-0.06%@y=4㎜ |
|
Flange BFL |
17.526mm |
|
Back focal length |
12.9mm |
|
Mount |
C-Mount |
|
1.1"FOV |
70.96mm×53.24mm(WD=200mm) |
|

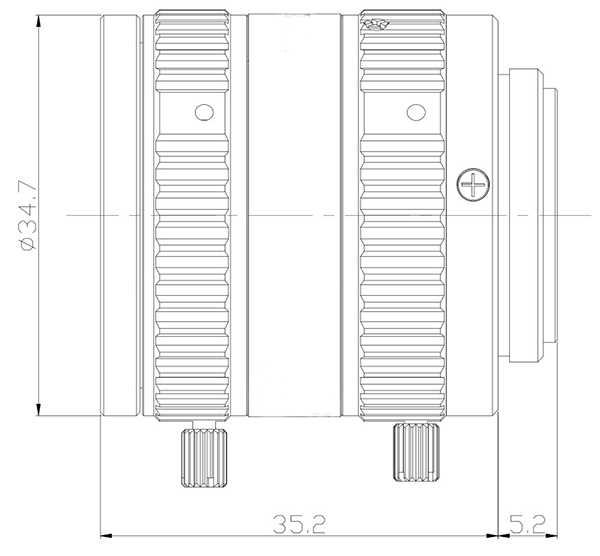

Dimension |
Ф34.7x35.2mm |
|
Weight |
83.5g |
|
Filter Thread |
M30.5x 0.5mm |
|
Working Temperature |
-20ºC ~ +60ºC |

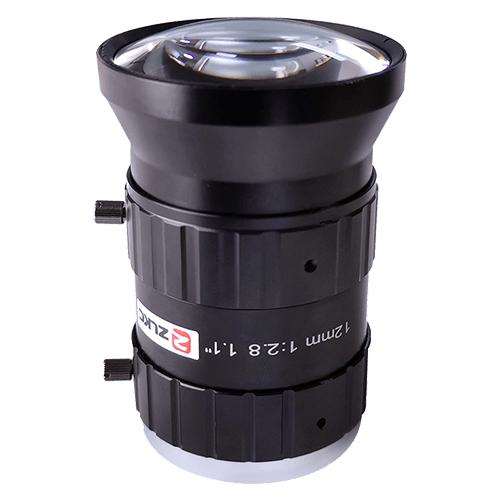

1.1-inch 12mm F2.8 20MP Manual Iris Lens Low distortion Lens...

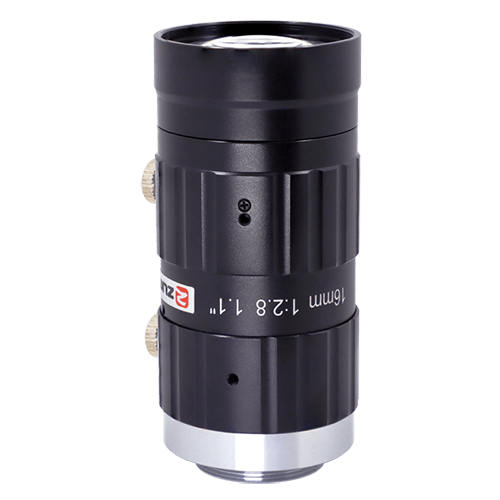

1.1-inch 16mm F2.8 20MP Manual Iris Lens Low distortion Lens...

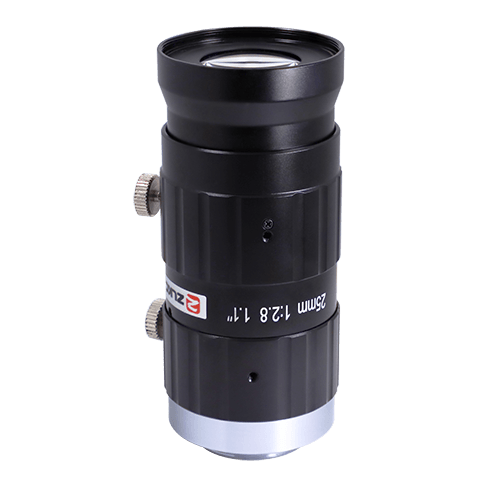

1.1-inch 25mm F2.8 20MP Manual Iris Lens Low distortion Lens...

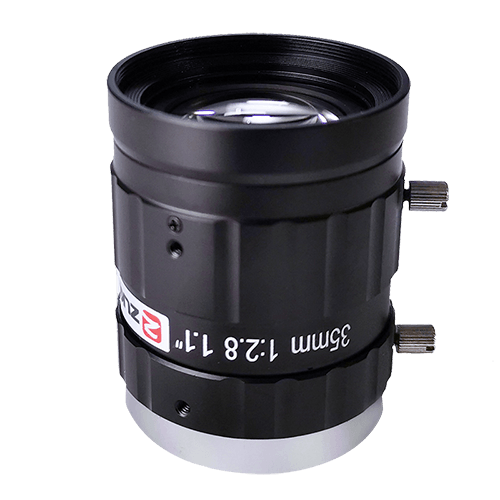

1.1-inch 35mm F2.8 20MP Manual Iris Lens Low distortion Lens...

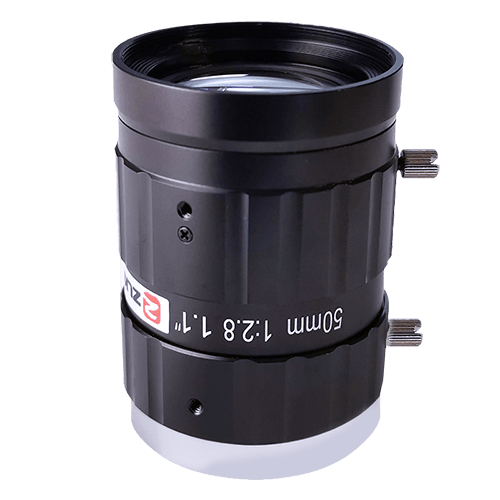

1.1-inch 50mm F2.8 20MP Manual Iris Lens Low distortion Lens...
