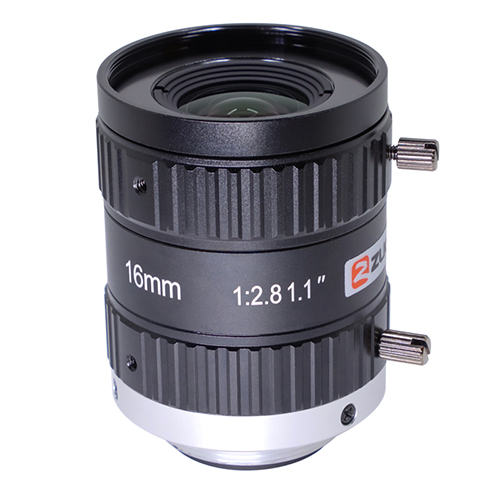

    20MP Large Format Lens FK1628MP20 Sensor 1.1-inch 16mm F2.8 C-Mount
    1.1″ C-Mount f=16mm F2.8
    Low distortion,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Locking set screws for focus and Iris
    Compact & Light weight
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Focal length：f=16mm
    ◆ F No.：F2.8-22
    ◆ Features：1.1-inch Large Format Lens 16mm C Mount 20MP Manual Iris Lens

    ※ Model
    FK1628MP20

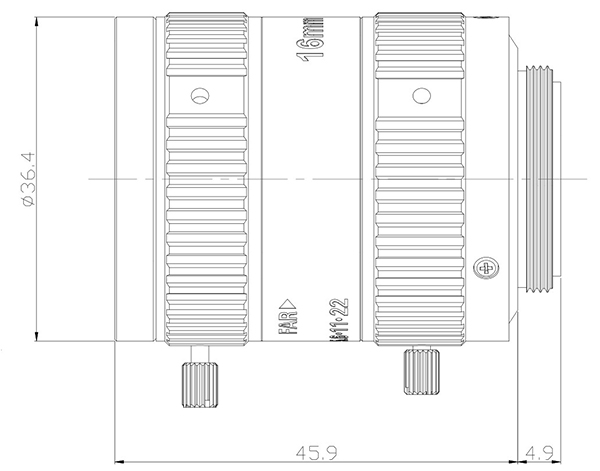

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    FK1628MP20

    Image Size

    1.1-inch

    Focal length

    16mm

    F No.

    F2.8-22

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1"  Type

    58.6°×46.9°×35.2°

    1"Type

    53.9°×43.9°×33.5°

    1/2"Type

    28.2°×22.6°×17.0°

    1/3"Type

    21.3°×17.0°×12.9°

    Distortion

    -0.73%@y=8.8㎜;-0.24%@y=4㎜

    Flange BFL

    17.526mm

    Back focal length

    11.2mm

    Mount

    C-Mount

    1.1"FOV

    99.84mm×74.88mm(WD=100mm)

    Dimension

    Ф36.4x45.9mm

    Weight

    116.2g

    Filter Thread

    M34x 0.5mm

    Working Temperature

    -20ºC ～ +60ºC

    FK1628MP20 specification
