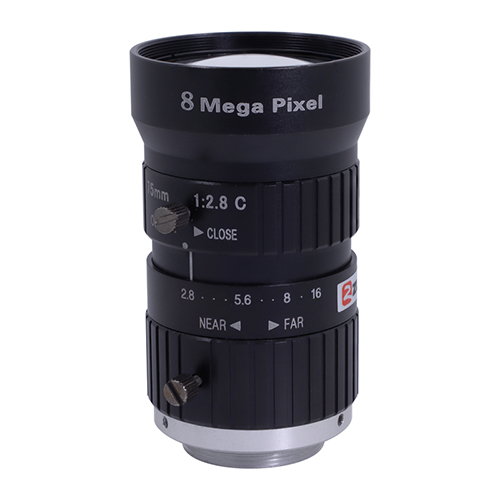

C-Mount Lens VM7528MPC 75mm 8MP F2.8 Manual Iris camera Lens 1-inch: 1″C-Mount 75mm F2.8; High resolution ,high clarity; Can suppress stray light; High resolution ,high clarity; Locking set screws for focus and Iris; Lower price,High cost performance

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ Product Features
◆ Brand：ZLKC
◆ Image Size：1″ C-mount
◆ Focal length：f=75mm
◆ F No.：F2.8-C
◆ Features：Manual Iris Lens 1-inch 75mm F2.8 C Mount Industrial camera Lens

※ Model
VM7528MPC

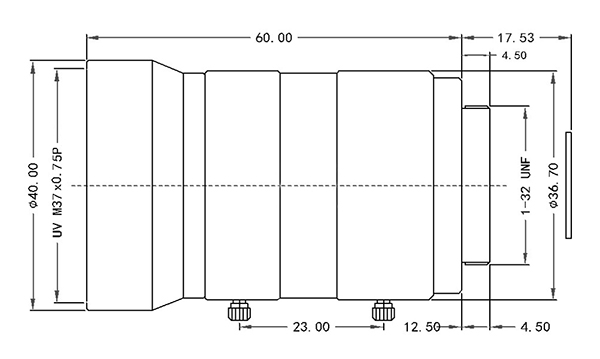

※ Dimension

※ Industries Application
Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on

Model		VM7528MPC
Image Size		1-inch
Focal length		75mm
F No.		F2.8
M.O.D(m)		0.5m-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1" Type	9.69°x7.22°
	2/3" Type	6.73°x5.10°
	1/1.8" Type	5.5°x4.0°
Distortion	1"Type	-0.05%
Mount		C-Mount
Dimension		Ф40x60mm
Weight		148.0g
Filter		M37 P=0.75mm
Remark		8MP HD LENS

VM7528MPC Specifications
