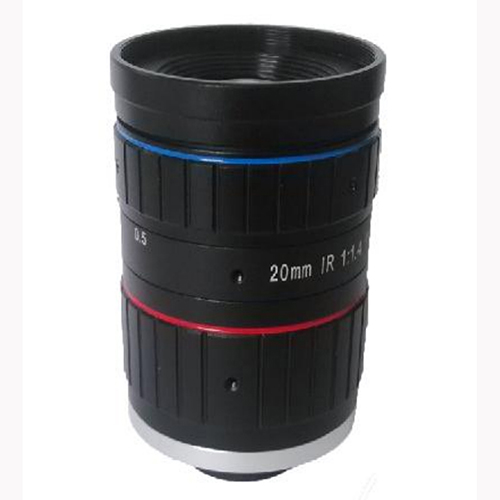

    HD Lens KM2014MP8IR 20mm 8.0MP Manual Iris Lens, 1-inch F1.4 IR Lens C Mount CCTV Lens
    C-Mount f=20mm IR
    Maximum image circle of 1" (φ16mm)
    High resolution ,high peripheral brightness ratio
    F1.4 Large aperture,excellent image uniformity
    high contrast,compact appearance
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=20mm
    ◆ F No.：F1.4-C
    ◆ Features：1-inch IR Lens 20mm 8.0MP Manual Iris Lens,  F1.4 Large aperture Lens C Mount

    ※ Model
    KM2014MP8IR

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and ITS. These cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM2014MP8IR

    Image Size

    1-inch

    Focal length

    20mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    43.9°×35.1°×26.9°

    2/3"Type

    29.9°×24.1°×18.3°

    Distortion

    1" Type

    -1.2%

    Back focal length

    10.8mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф41.5x61.6mm

    Weight

    195.0g

    Horizontal Resolution

    160lp/mm

    Remark

    8MP HD IR LENS

    KM2014MP8IR Specifications
