    SWIR lens 5MP 1-inch Shortwave Infrared Lenses SW3514MP5IR 35mm C-Mount
    1″ C-Mount f=35mm 5MP
    High resolution,wavelength 700-1700nm
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：2/3" C-Mount
    ◆ Focal length：f=35mm
    ◆ F No.：F1.4-22
    ◆ Features：5MP Focal length 35mm 1″C-Mount SWIR Shortwave Infrared Lenses

    ※ Model
    SW3514MP5IR

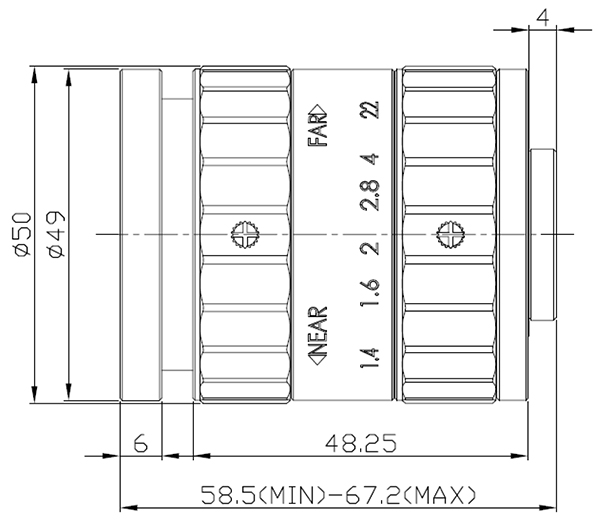

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    Model

    SW3514MP5IR

    Image Size

    1-inch

    Focal length

    35mm

    F No.

    F1.4-16

    M.O.D(m)

    0.3-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    26.54°×21.23°×15.92°

    2/3"Type

    18.03°×14.43°×10.82°

    1/2"Type

    13.19°×10.55°×7.91°

    Distortion

    1" Type

    -0.27%

    Back focal length

    21.49mm

    Mount

    C-Mount

    Object Dimension (mm) WD=350mm

    108.75x81.56mm

    Dimension

    Ф50x58.5mm

    Weight

    189.0g

    Horizontal Resolution

    100lp/mm

    optical wavelength

    700~1700mm

    Filter Thread

    M46x 0.75

    Working Temperature

    -20ºC ～ +60ºC

    SW3514MP5IR Specifications
