    SWIR lens 5MP 1-inch Shortwave Infrared Lenses SW2514MP5IR 25mm C-Mount
    1″ C-Mount f=25mm 5MP
    High resolution,wavelength 700-1700nm
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：2/3" C-Mount
    ◆ Focal length：f=25mm
    ◆ F No.：F1.4-22
    ◆ Features：5MP Focal length 25mm 1″C-Mount SWIR Shortwave Infrared Lenses

    ※ Model
    SW2514MP5IR

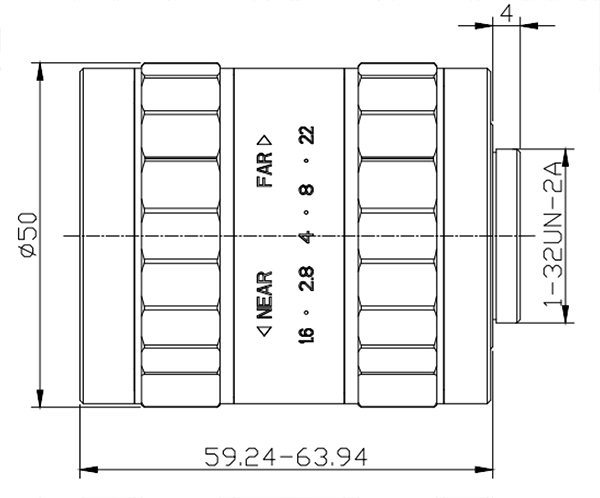

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    Model

    SW2514MP5IR

    Image Size

    1-inch

    Focal length

    25mm

    F No.

    F1.4-22

    M.O.D(m)

    0.3-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    36.66°×29.35°×22.04°

    2/3"Type

    25.24°×20.20°×15.16°

    1/2"Type

    18.37°×14.70°×11.03°

    Distortion

    1" Type

    -0.38%

    Back focal length

    20.84mm

    Mount

    C-Mount

    Object Dimension (mm) WD=300mm

    157.08x116.85mm

    Dimension

    Ф64x56.6mm

    Weight

    200.0g

    Horizontal Resolution

    100lp/mm

    optical wavelength

    700~1700mm

    Filter Thread

    M46x 0.75

    Working Temperature

    -20ºC ～ +60ºC

    SW2514MP5IR Specifications
