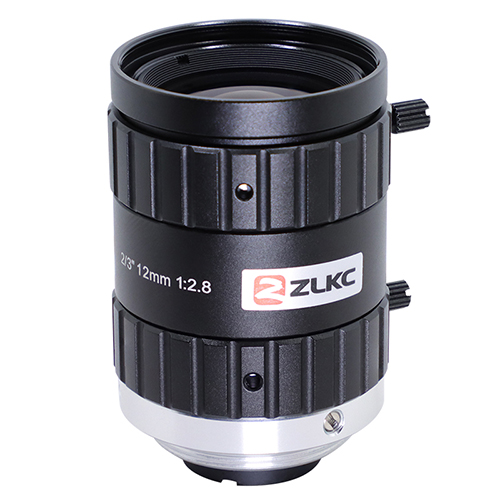

    5MP Lens LM1228MP5 12mm Manual Iris 2/3-inch F2.8 C-Mount
    2/3″C-Mount f=12mm F2.8
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure,compact appearance
    Used in Industrial Camera,ITS Camera
    Product Features
    Brand:ZLKC
    ◆ Image Size:2/3″ C-mount
    ◆ Focal length:f=12mm
    ◆ F No.:F2.8-16
    ◆ Features:2/3-inch 12mm Manual Iris Lens  FA  Lens C Mount HD Lens

    Model
    LM1228MP5

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,traffic cameras and so on

    5MP FA Lens 12mm  2/3 C Mount

    Model

    LM1228MP5

    Image circle

    2/3-inch (Φ11)

    Focal length

    12mm

    F No.

    F2.8-16

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    49.55°×40.38°×30.88°

    1/2"Type

    37.0°×30.0°×22.72°

    1/3"Type

    28.2°×22.72°×17.14°

    FOV

    2/3"Type

    109.92×87.53×65.17mm

    1/2"Type

    79.34×63.16×47.2mm

    1/3"Type

    59.16×47.2×35.34mm

    Distortion

    -0.07%

    Back focal length

    9.85mm

    Flange Back Focal Length

    17.526mm

    Mount

    C-Mount

    CRA

    6.28°

    Dimension

    Φ33.6×45.17mm

    Weight

    77.8g

    Filter Thread

    M30.5*P0.5

    工作温度Working Temperature

    -20ºC +60ºC

    LM1228MP5 Specifications
