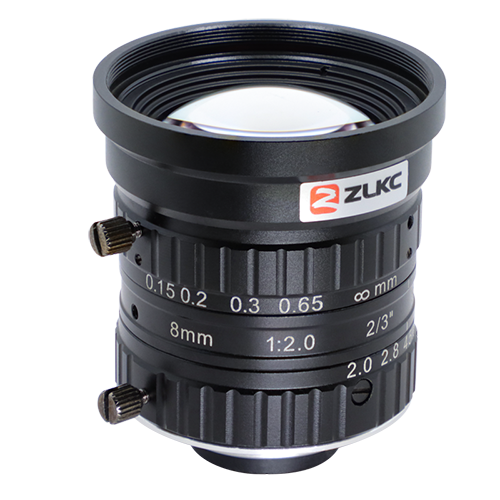

    5MP Lens LM0820MP5 8mm Manual Iris 2/3-inch F2.0 C-Mount
    2/3″C-Mount f=8mm F2.0
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in Industrial Camera,ITS Camera
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=8mm
    ◆ F No.：F2.0-16
    ◆ Features：2/3-inch 8mm Manual Iris Lens  FA  Lens C Mount HD Lens

    ※ Model
    LM0820MP5

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

     5MP FA Lens 8mm  2/3” C Mount

    Model

    LM0820MP5

    Image circle

    2/3-inch (Φ11)

    Focal length

    8mm

    F No.

    F2.0-16

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    67.92°×52.14°×40.18°

    1/2"Type

    56.62°×42.65°×32.55°

    1/3"Type

    43.87°×32.55°×26.65°

    FOV

    2/3"Type

    135.11x89.42mm

    1/2"Type

    97.71x64.7mm

    1/3"Type

    72.91x48.39mm

    Distortion

    -0.73%

    Back focal length

    10.32mm

    Flange Back Focal Length

    17.526mm

    Mount

    C-Mount

    CRA

    7.26°

    Dimension

    Φ44×43.0mm

    Weight

    121.0g

    Filter Thread

    M40.5*P0.5

    Working Temperature

    -20ºC ～ +60ºC

    LM0820MP5 Specifications
