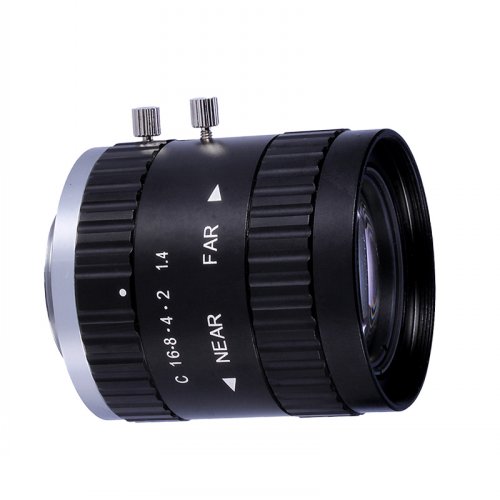

5MP 8mm Low distortion FA Lens C Mount |
Working Distance |
Magnification |
2/3"Field of View(mm) |
|||
Model |
HM0814MP5 |
mm |
- |
H |
V |
|
Image Size |
2/3-inch |
900 |
0.009X |
976.8 |
731.5 |
|
Focal length |
8mm |
850 |
0.010X |
923.3 |
691.4 |
|
F No. |
F1.4-16 |
800 |
0.010X |
869.8 |
651.3 |
|
M.O.D(m) |
0.1-Inf. |
750 |
0.011X |
816.3 |
611.2 |
|
Operation |
Iris |
Manual |
700 |
0.012X |
762.8 |
571.1 |
Focus |
Manual |
650 |
0.013X |
709.3 |
531.0 |
|
Angle of View (D×H×V) |
2/3" |
66.8°×55.8°×43.3° |
600 |
0.014X |
655.8 |
490.9 |
1/2" |
53.1°×42.5°×32.4° |
550 |
0.015X |
602.3 |
450.8 |
|
Distortion |
<0.2% |
500 |
0.016X |
548.8 |
410.7 |
|
BFL |
10.74mm |
450 |
0.018X |
495.3 |
370.6 |
|
Mount |
C-Mount |
400 |
0.020X |
441.8 |
330.5 |
|
Object Dimension |
350 |
0.023X |
388.3 |
290.4 |
||

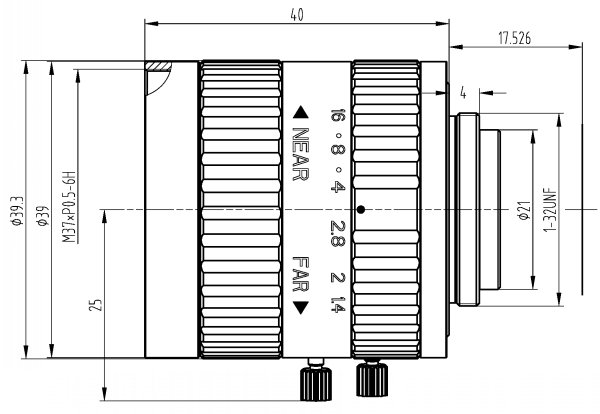

Dimension |
Φ39×40mm |
300 |
0.027X |
334.8 |
250.3 |
|
Weight |
115.0g |
250 |
0.032X |
281.2 |
210.2 |
|
Horizontal Resolution |
5MP |
200 |
0.039X |
227.7 |
170.0 |
|
Filter Thread |
M37x 0.5 |
150 |
0.052X |
174.2 |
129.9 |
|
Working Temperature |
-20ºC ~ +60ºC |
100 |
0.075X |
120.7 |
89.8 |

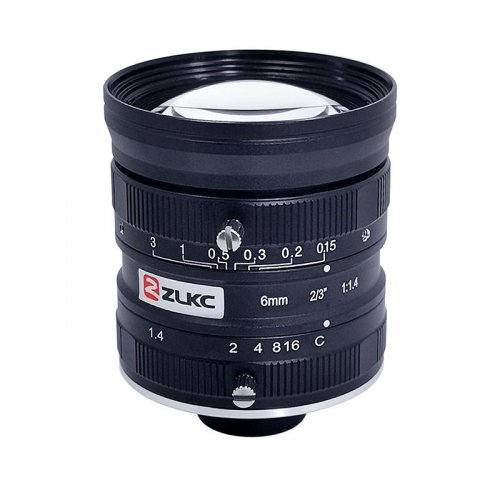

2/3-inch 6mm F1.4 Manual Iris Lens Low distortion Lens C Mou...

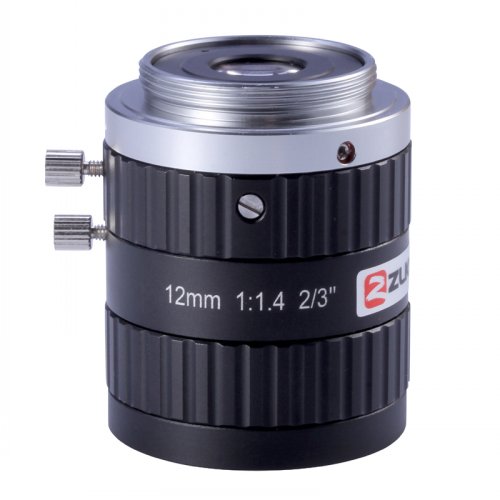

2/3-inch 12mm F1.4 Manual Iris Lens Low distortion Lens C Mo...
2/3-inch 16mm F1.4 Manual Iris Lens Low distortion Lens C Mo...

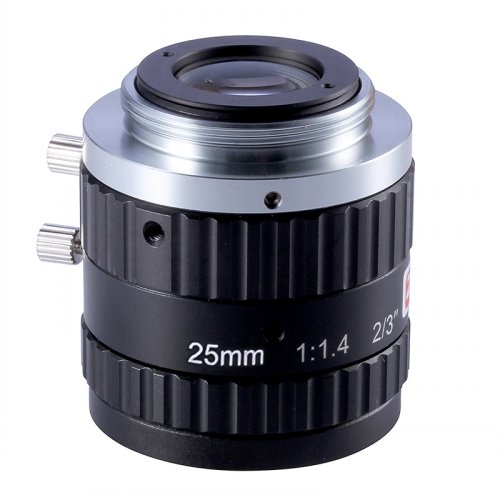

2/3-inch 25mm F1.4 Manual Iris Lens Low distortion Lens C Mo...

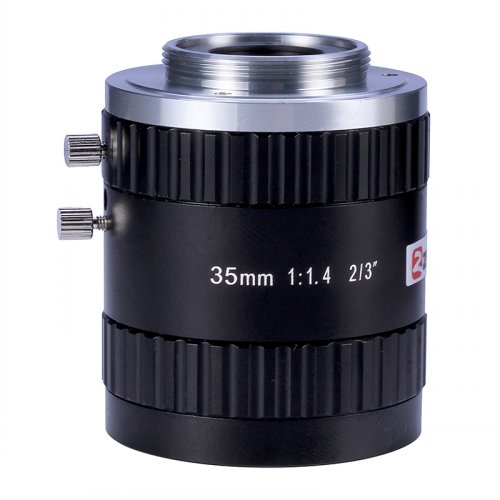

2/3-inch 35mm F1.4 Manual Iris Lens Low distortion Lens C Mo...

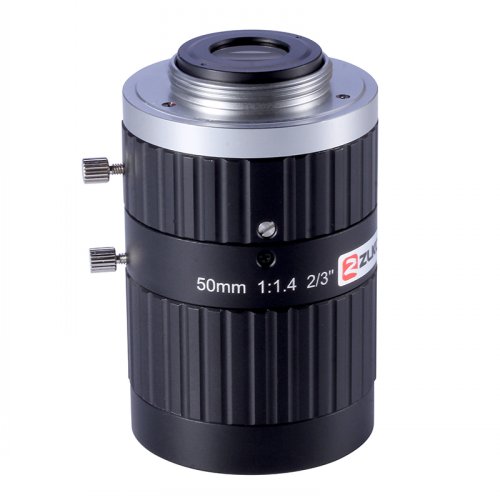

2/3-inch 50mm F1.4 Manual Iris Lens Low distortion Lens C Mo...

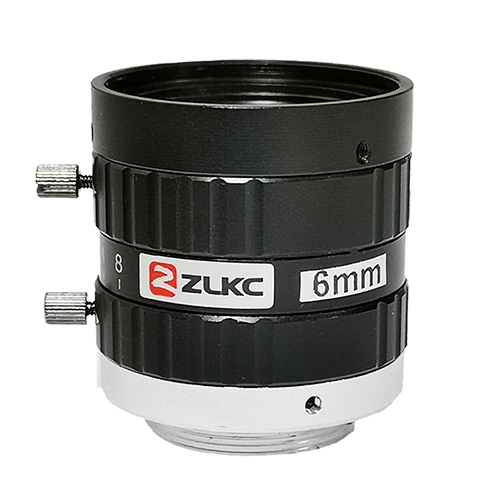

2/3-inch 6mm F1.6 Manual Iris Lens Low distortion Lens C Mou...
