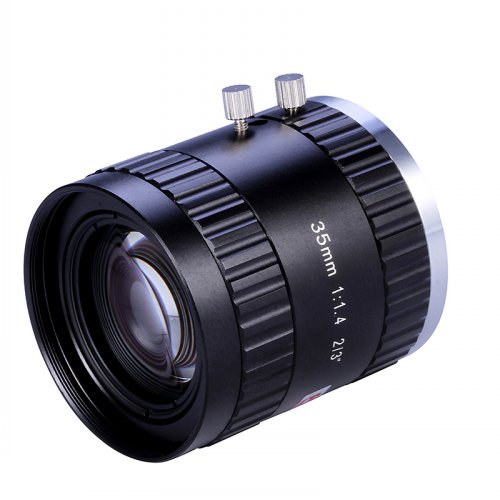

5MP 35mm Low distortion FA Lens C Mount |
Working Distance |
Optical Magnification |
2/3"Field of View(mm) |
|||
Model |
HM3514MP5 |
mm |
- |
H |
V |
|
Image Size |
2/3-inch |
900 |
0.037X |
236.2 |
176.9 |
|
Focal length |
35mm |
850 |
0.040X |
223.2 |
167.2 |
|
F No. |
F1.4-16 |
800 |
0.042X |
210.3 |
157.5 |
|
M.O.D(m) |
0.2-Inf. |
750 |
0.045X |
197.3 |
147.8 |
|
Operation |
Iris |
Manual |
700 |
0.048X |
184.3 |
138.1 |
Focus |
Manua |
650 |
0.052X |
171.4 |
128.4 |
|
Angle of View (D×H×V) |
2/3" |
17.5°×14°×10.3° |
600 |
0.056X |
158.4 |
118.6 |
1/2" |
12.6°×10.1°×7.6° |
550 |
0.061X |
145.5 |
108.9 |
|
Distortion |
<0.1% |
500 |
0.067X |
132.5 |
99.2 |
|
BFL |
12.82mm |
450 |
0.074X |
119.6 |
89.5 |
|
Mount |
C-Mount |
400 |
0.083X |
106.6 |
79.8 |
|
Object Dimension |
80.7mm×60.4mm(WD=300mm) |
350 |
0.094X |
93.7 |
70.1 |
|

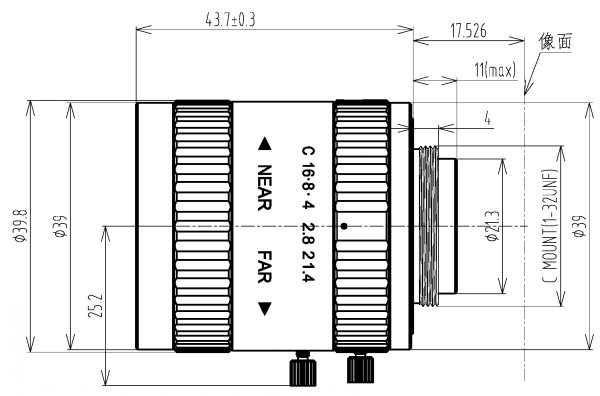

Dimension |
Φ39×43.7mm |
300 |
0.110X |
80.7 |
60.4 |
|
Weight |
130.0g |
250 |
0.131X |
67.7 |
50.6 |
|
Horizontal Resolution |
5.0MP |
200 |
0.162X |
54.7 |
40.9 |
|
Filter Thread |
M37x 0.5 |
150 |
0.213X |
41.8 |
31.2 |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
