    5MP FA Lens HM0616MP5 6mm Low distortion Lens 2/3-inch F1.6 C-Mount
    2/3″C-Mount f=6mm 5MP
    F1.6, Maximum image circle of 2/3"
    High resolution ,excellent image uniformity
    high contrast,high peripheral brightness ratio
    Low distortion,high measurement accuracy
    Easy device integration with compact structure
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=6mm
    ◆ F No.：F1.6-16
    ◆ Features：2/3-inch 6mm F1.6 Manual Iris Lens Low distortion Lens C Mount FA Lens

    ※ Model
    HM0616MP5

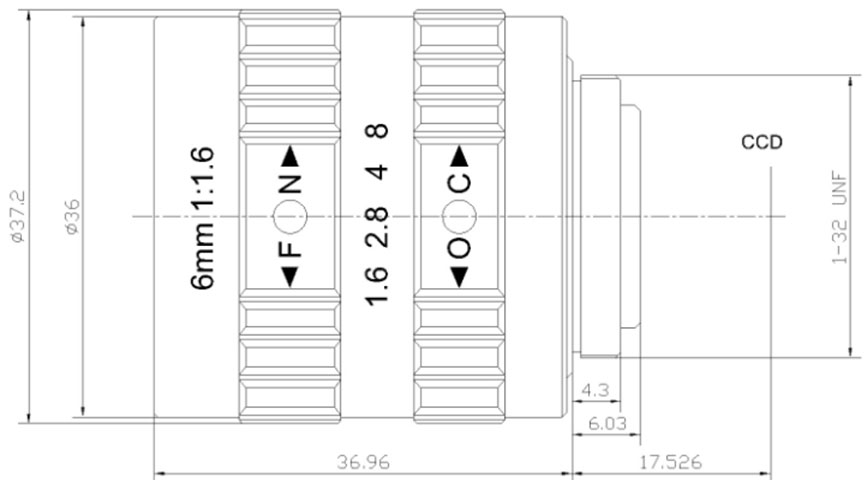

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HM0616MP5

    Image Size

    2/3-inch

    Focal length

    6mm

    F No.

    F1.6-16

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View (D×H×V)

    2/3"Type

    82.2°×73°×58.2°

    1/2"Type

    68°×57°×44°

    Distortion

    2/3"Type

    -1.8%


    1/2"Type

    -1.5%

    Back focal length

    12.1mm

    Mount

    C-Mount

    Dimension

    Φ37×37mm

    Weight

    89.0g

    Horizontal Resolution

    5MP

    Filter Thread

    M36x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    HM0616MP5 Specifications
