    CCTV Lens VG12050MP6IR 12-50mm 6.0 Megapixel DC Iris Lens,1/1.8” Vari-focal HD Lens CS Mount
    1/1.8″ CS-Mount 12-50mm
    6MP Auto DC iris F1.5-360
    High resolution ,excellent image uniformity
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ CS-mount
    ◆ Focal length：f=12-50mm
    ◆ F No.：F1.5-360
    ◆ Features：1/1.8-inch 12-50mm 6.0Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    ※ Model
    VG12050MP6IR

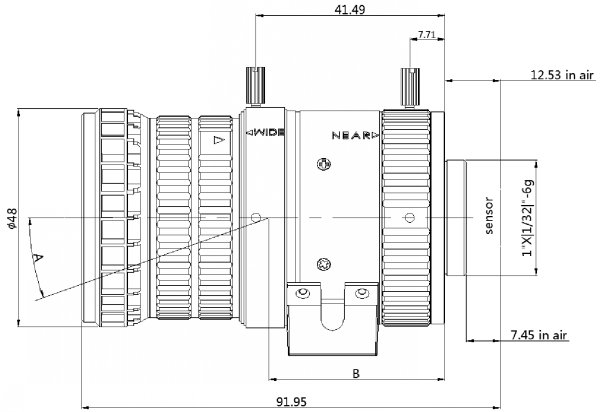

    ※ Dimension

    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG12050MP6IR

    Image Size

    1/1.8-inch

    Focal length

    12-50mm

    F No.

    F1.5-360

    M.O.D(m)

    0.3m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/1.8"Type

    -9%@wide ，-3%@Tele

    Horizontal Angle of View

    1/1.8"Type

    W38°×33°×20°;T9.8°×8.6°×4.8°

    Mount

    CS-Mount

    Back focal length

    7.45mm

    Flange focal length

    12.53mm

    Dimension

    Ф48x79.42mm

    Weight

    155.0g

    Remark

    6MP HD CCTV LENS

    VG12050MP6IR specification
