    CCTV Lens VG05100MP2IR 5-100mm 2Megapixel DC Iris Lens,1/2.7” Vari-focal HD Lens CS Mount
    1/2.7″CS-Mount 5-100mm
    High resolution ,excellent image uniformity
    2MP Auto DC iris F1.6-360
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ CS-mount
    ◆ Focal length：f=5-100mm
    ◆ F No.：F1.6-360
    ◆ Features：1/2.7-inch 5-100mm 2Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    ※ Model
    VG05100MP2IR

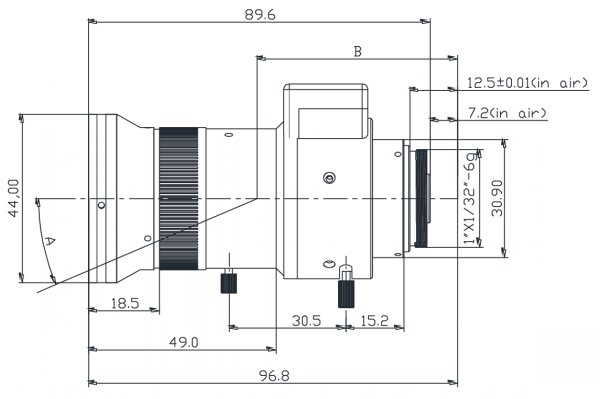

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG05100MP2IR

    Image Size

    1/2.7-inch

    Focal length

    5－100mm

    F No.

    F1.6-360

    M.O.D(m)

    0.3m

    Operation

    Iris

    Auto 

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -7%@wide

    1/3"Type

    -5%@wide

    Horizontal Angle of View

    1/2.7"Type

    W54°×43°×32°;T4.1°×3°×2.3°

    Mount

    CS-Mount

    Back focal length

    7.2mm

    Dimension

    Ф44x89.6mm

    Weight

    190.0g

    Remark

    2MP HD CCTV LENS

    VG05100MP2IR specification
