Current location: Home >CCTV Lens >Surveillance Lens >Auto Iris Vari-focal Lens >CCTV Lens VG11050MP8IR 11-50mm 8Megapixel DC Iris Lens,1/1.7” Vari-focal HD Lens CS Mount
    CCTV Lens VG11050MP8IR 11-50mm 8Megapixel DC Iris Lens,1/1.7” Vari-focal HD Lens CS Mount
    1/1.7″ CS-Mount f=11-50mm
    High resolution ,excellent image uniformity
    8MP Auto DC iris F1.4-360
    Locking set screws for focus and zoom
    IR Correction Lens, compact structure
    For Security Camera,CCTV Lens
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/1.7″ CS-mount
    ◆ Focal length:f=11-50mm
    ◆ F No.:F1.4-360
    ◆ Features:1/1.7-inch 11-50mm 8 Megapixel DC Iris Lens IR CCTV  Lens CS Mount HD Lens

    Model
    VG11050MP8IR

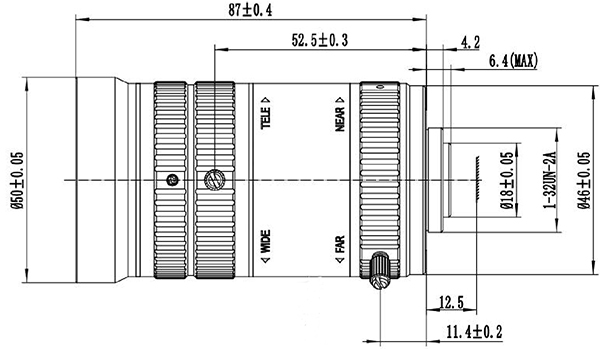

    Dimension


    Industries Application
    These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VG11050MP8IR

    Image Size

    1/1.7-inch

    Focal length

    11-50mm

    F No.

    F1.4-360

    M.O.D(m)

    1.5m

    Operation

    Iris

    Auto

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/1.7"

    Wide -10.7% ;Tele -0.07%

    Horizontal Angle of View

    1/1.7"Type

    W47°×36.9°×27.2°;T10.9°×8.8°×6.6°

    1/1.8"Type

    W44.2°×38°×21°;T10.4°×9°×5.1°

    Mount

    CS-Mount

    Flange BFL

    12.5mm

    BFL

    8.26mm

    MBF

    6.95mm

    IR Correction

    Yes

    Dimension

    Ф49x84.7mm

    Weight

    267.0g

    Operating temperature

    -30℃~+70

    VG11050MP8IR specification
