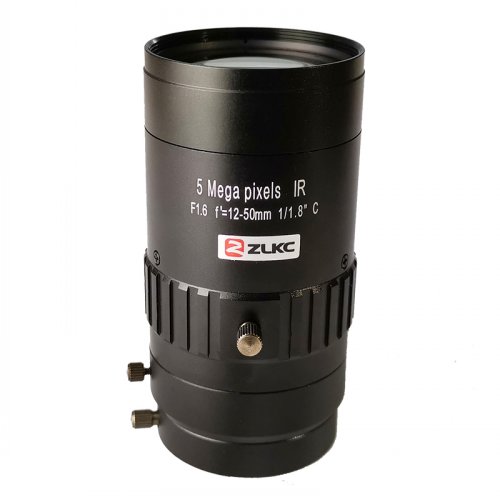

    ZLKC Lens VM12050MP5IR 12-50mm 5Megapixel Manual Iris Lens, 1/1.8” Vari-focal HD Lens CCTV Lens C Mount
    1/1.8″C-Mount F1.6 12-50mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=12-50mm
    ◆ F No.：F1.6-C
    ◆ Features：1/1.8" 12-50mm 5Megapixel Manual Iris Lens Vari-focal  Lens C Mount HD Lens

    ※ Model
    VM12050MPIR

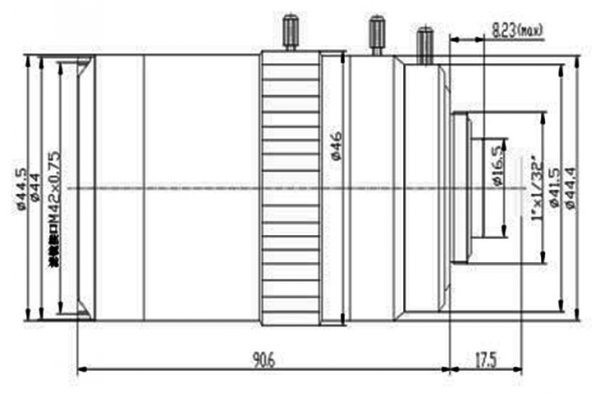

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and industrial automation. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VM12050MP5IR

    Image Size

    1/1.8-inch

    Focal length

    12-50mm

    F No.

    F1.6-C

    M.O.D(m)

    0.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/1.8"Type

    -5%@wide -0.5%@tele

    Horizontal Angle of View

    1/1.8"Type

    33.8°×8.2°

    1/2"Type

    29.5°×7.3°

    Mount

    C-Mount

    Back focal length

    8.9mm-14mm

    Dimension

    Φ44.5x 90.6mm

    Weight

    177.0g

    Remark

    5MP HD lens

    VM12050MP5IR specification
