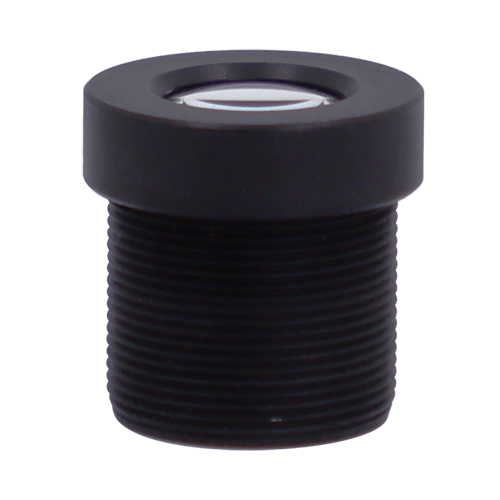

5MP 16mm Low distortion S-Mount

Working Distance

Optical Magnification

1/1.8"Field of View(mm)

Model

MTV16MP5C

mm

-

H

V

Image Size

1/1.8-inch

850

0.019X

375.7

281.7

Focal length

16mm

800

0.020X

353.3

264.9

F No.

F2.8

750

0.022X

330.8

248.1

M.O.D(m)

0.1-Inf.

700

0.023X

308.4

231.3

Operation

Iris

Fix

650

0.025X

286.0

214.5

Focus

Manual

600

0.027X

263.6

197.7

Angle of View (D×H×V)

1/1.8"

30.5°×24.6°×18.6°

550

0.030X

241.2

180.9

1/3"

20.6°×17.3°×12.5°

500

0.033X

218.8

164.1

Distortion

<0.1%

450

0.037X

196.3

147.3

BFL

10.07mm

400

0.042X

173.9

130.4

Mount

M12XP0.5

350

0.048X

151.5

113.6

Object Dimension(mm)

129.1×96.8 (WD=300mm)

300

0.056X

129.1

96.8

Resolusion

5MP

250

0.068X

106.6

80

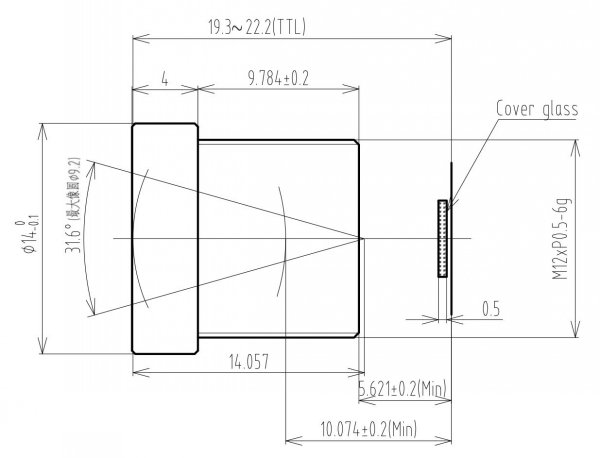

Dimension

Φ14×9.79mm

200

0.086X

84.2

63.2

Weight

6.3g

150

0.117X

61.8

46.3

Working Temperature

-20ºC ～ +60ºC

100

0.184X

39.3

29.5
