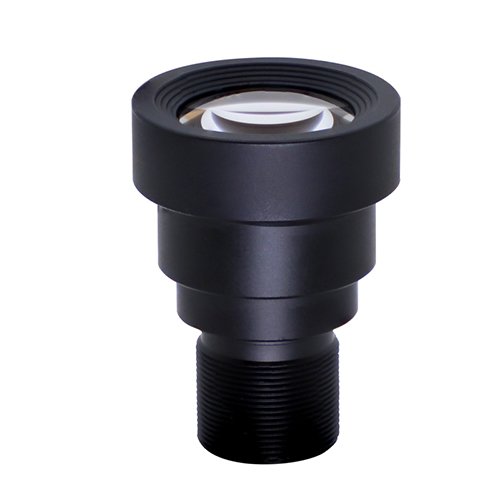

    50mm 5MP 2/3-inch F2.8 S-Mount Low distortion FA Lens MTV50MPC
    2/3″S-Mount f=50mm 5MP
    Low distortion,high contrast
    Small volume,compact appearance
    Convenient for M12/S-Mount cameras
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ S-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F2.8
    ◆ Features：S-Mount lens 50mm 5MP 2/3" Low distortion FA Lens

    ※ Model
    MTV50MPC

    ※ Dimension


    ※ Industries Application
    These are used in M12/S-Mount camera. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on

    型号Model

    MTV50MPC

    像机尺寸Image Size

    2/3-inch

    焦距Focal length

    50mm

    光圈范围F No.

    F2.8

    最短物距M.O.D(m)

    0.5m-Inf.

    控制方式Operation

    Iris

    Fix固定

    Focus

    Manual手动调整

    视场角Horizontal Angle of View

    2/3"Type

    10.1°x7.6°

    1/1.8"Type

    8.2°x6.1°

    1/2"Type

    7.3°x5.5°

    接口Mount

    M12XP0.5

    畸变TV Distortion

    -0.3%

    光学后焦BFL

    5.5mm

    外形尺寸Dimension

    Ф22x35.5mm

    重量Weight

    14.5g

    分辨率Resolusion

    5MP

    工作温度Working Temperature

    -20ºC ～ +60ºC

    MTV50MPC Specifications
