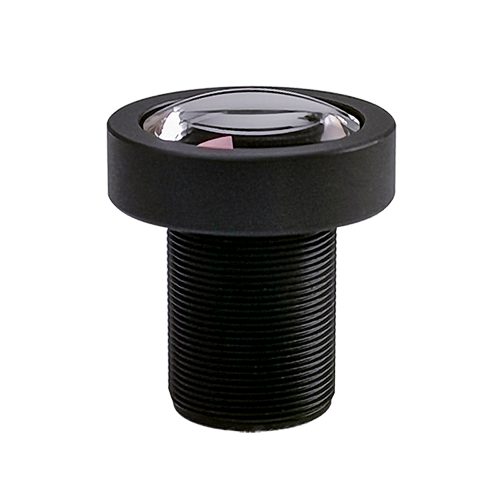

    4.5mm 8MP 1/1.8-inch F2.0 S-Mount Low distortion FA Lens MTV045MP8C
    1/1.8″S-Mount f=4.5mm 8MP
    Low distortion,high contrast
    Small volume,compact appearance
    Convenient for M12/S-Mount cameras
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ S-mount
    ◆ Focal length：f=4.5mm
    ◆ F No.：F2.0
    ◆ Features：S-Mount lens 4.5mm 8MP 1/1.8" Low distortion FA Lens

    ※ Model
    MTV045MP8C

    ※ Dimension


    ※ Industries Application
    These are used in M12/S-Mount camera. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on

    Model

    MTV045MP8C

    Image Size

    1/1.8-inch

    Focal length

    4.5mm

    F No.

    F2.0

    M.O.D(m)

    0.05-Inf.

    Operation

    Iris

    Fix

    Focus

    Manual

    Angle of View (D×H×V)

    1/1.8"

    98.5°×90.2°×54.8°

    Distortion

    <1.6%

    CRA

    ≤10.4°

    BFL

    5.9mm

    Mount

    M12XP0.5

    Object Dimension(mm)

    491.4×327.6 (WD=300mm)

    Resolusion

    8MP

    Dimension

    Φ24×24.8mm

    Weight

    13.5g

    IR Correction

    Yes

    Working Temperature

    -20ºC ～ +60ºC

    MTV045MP8C Specifications
