    12MP FA Lens HK0618MP12 6mm Low distortion Lens 1-inch F2.0 C-Mount
    1″ C-Mount f=6mm F1.8
    High resolution,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Low distortion -2.3% or less
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Focal length：f=6mm
    ◆ F No.：F1.8-16
    ◆ Features：1.1-inch FA Lens 6mm 12MP Manual Iris Lens, Fixed focus Lens Low distortion C Mount HD Lens

    ※ Model
    HK0618MP12

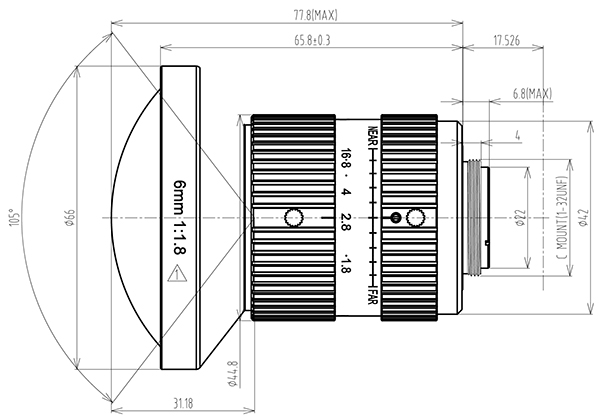

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HK0618MP12

    Image Size

    1.1-inch

    Focal length

    6mm

    F No.

    F1.8-16

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1"Type

    107.5°×95.4°×78.4°

    2/3"Type

    86.6°×73.3°×57.5°

    Distortion

    -2.3%

    Back focal length

    13.57mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    1"FOV

    257.0mm×192.7mm(WD=100mm)

    Dimension

    Ф66x77.8mm

    Weight

    210.0g

    Horizontal Resolution

    180lp/mm

    Working Temperature

    -20ºC ～ +60ºC


    HK0618MP12 Specifications
