Model |
HK3520MP12 |
|
Image Size |
1-inch |
|
Focal length |
35mm |
|
F No. |
F2.0-close |
|
M.O.D(m) |
0.2-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
1" Type |
26.1°×20.8°×15.7° |
1/2"Type |
13.3°×10.6°×7.9° |
|
1/3"Type |
9.9°×7.9°×6.0° |
|
Distortion |
-0.03% |
|
Back focal length |
12.96mm |
|
Mount |
C-Mount |
|
1"FOV |
64.9mm×48.7mm(WD=150mm) |
|

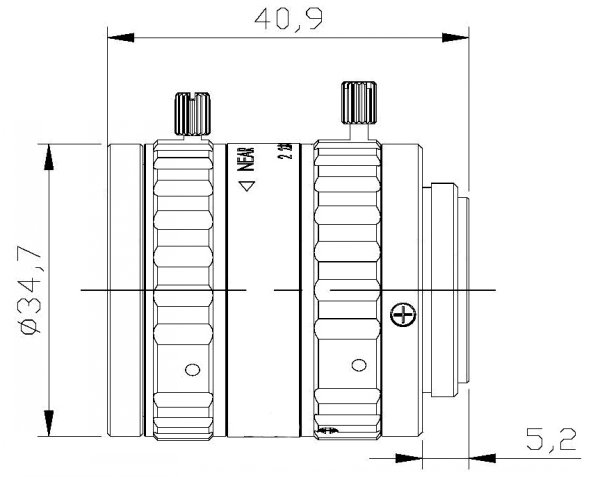

Dimension |
Ф34.7x35.7mm |
|
Weight |
81.0g |
|
Horizontal Resolution |
||
Filter Thread |
M30.5x 0.5mm |
|
Working Temperature |
-20ºC ~ +60ºC |
