    12MP FA Lens HK0522MP12 5mm Low distortion Lens 1-inch F2.0 C-Mount
    Φ14.2 C-Mount f=5mm F2.2
    High resolution,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：Φ14.2 C-mount
    ◆ Focal length：f=5mm
    ◆ F No.：F2.2
    ◆ Features：Φ14.2 FA Lens 5mm 12MP Manual Iris Lens, Fixed focus Lens C Mount HD Lens

    Model
    HK0522MP12

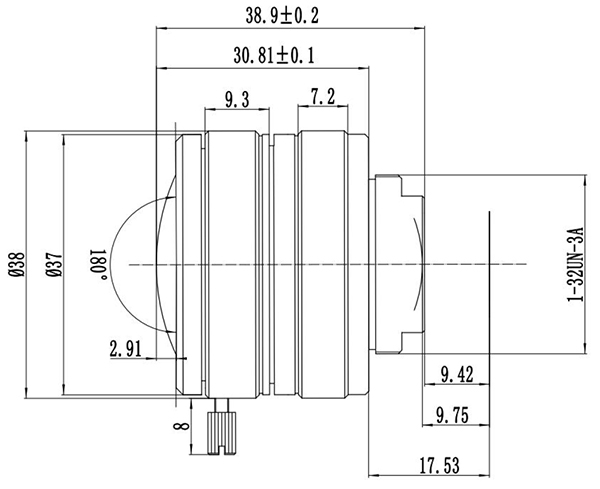

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HK0522MP12

    Image Size

    Φ14.2@180°

    Focal length

    5mm

    F No.

    F2.2

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Fix

    Focus

    Manual

    Horizontal Angle of View(°)

    (mm)

    1″(16x12.5x10)

    1/1.6″(10.1x8.1x6)

    1/1.8″（8.9x7.2x5.3）

    D

    180

    119.3

    104.6

    H

    150.2

    95

    84.4

    V

    118

    70.2

    62

    Distortion

    -97%

    CRA

    ≤9.9°

    Back focal length

    9.75mm

    MBF

    9.42mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф38x38.9mm

    Weight

    210.0g

    Horizontal Resolution

    200lp/mm

    HK0522MP12 Specifications
