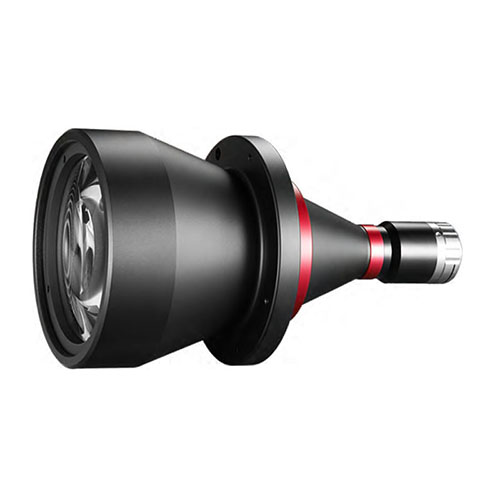

    ZLKC megapixel Telecentric lens FK008X330TS 0.087x 330mm
    1″ C-Mount 0.087x
    Megapixels high-resolution telecentric lens
    supporting working distance 330mm
    Wide magnification ranges from 0.08X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Magnification：0.087X
    ◆ WD：330mm±5mm
    ◆ Features：High Mag Telecentric Lens C-Mount 0.087x instant measurement lens

    ※ Model
    FK008X330TS

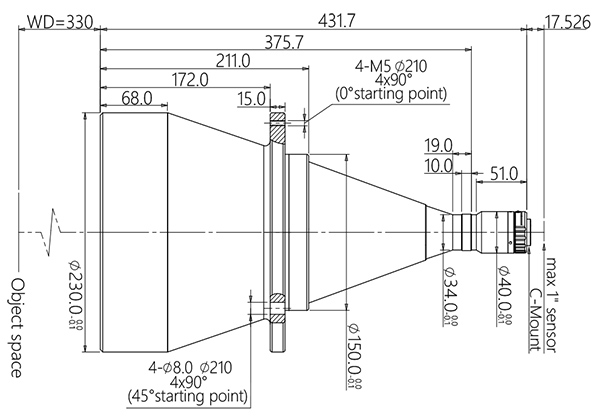

    ※ Dimension


    ※ Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.

    Model

    FK008X330TS

    Max Image Size

    1-inch

    Magnification

    0.087X

    WD (mm)

    330±5

    Working F/#

    12.6

    MTF30 (lp/mm)

    >140

    Depth of field(mm)

    ±84.6@F16

    Distortion

    <0.1%

    I/O(mm)

    779±5

    FOV（WxH）(mm)

    1" PYTHON 5000(12.43x9.83)

    142.9x113.0

    1" IMX255(14.19x7.51)

    163.1x86.3

    1" IMX183(13.13x8.76)

    150.9x100.7

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    431.7mm

    FK008X330TS specification
