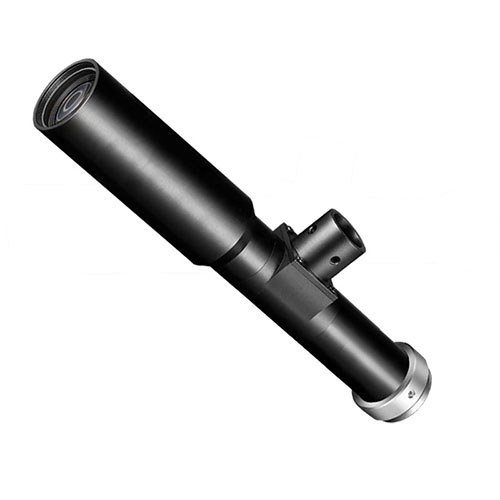

    ZLKC megapixel coaxial Telecentric lens FM05X350CT 0.5x 350mm
    1/2″ C-Mount 0.5x coaxial
    Megapixels high-resolution telecentric lens
    supporting working distance 350mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2″ C-mount
    ◆ Magnification：0.5X
    ◆ WD：350mm
    ◆ Features：Coaxial Telecentric Lens C-Mount 0.5x instant measurement lens

    ※ Model
    FM05X350CT

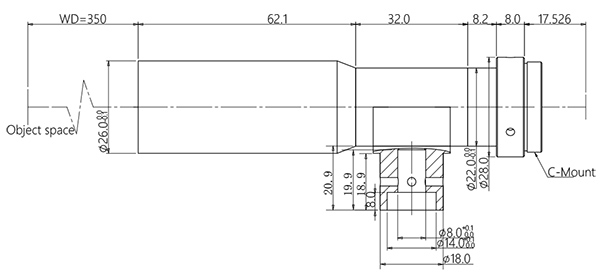

    ※ Dimension


    ※ Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.

    Model

    FM05X350CT

    Max Image Size

    1/2-inch

    Magnification

    0.5X

     WD (mm)

    350

    Working F/#

    17.6

    Object NA(mm)

    0.01416

    Depth of field(mm)

    5.6

    Distortion

    <0.16%

    Resolution

    23.7μ

    FOV（WxH）(mm)

    1/2"(6.4×4.8)

    12.8×9.6

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    110.3mm

    FM05X350CT specification
