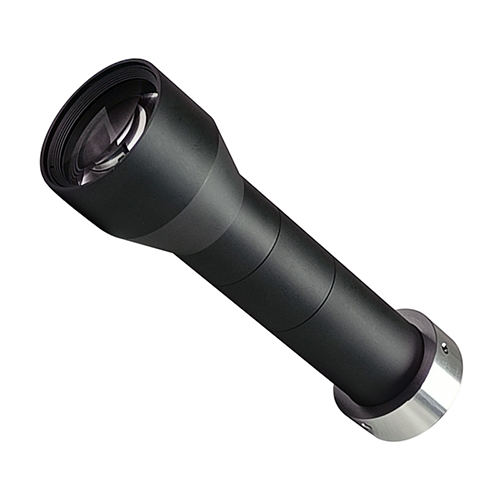

    ZLKC high-resolution Telecentric lens HM60X110T 6x 110mm
    2/3″ C-Mount 6x
    Megapixels high-resolution telecentric lens
    supporting working distance 110mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Magnification：6X
    ◆ WD：110mm
    ◆ Features：High Mag Telecentric Lens C-Mount 6x instant measurement lens

    ※ Model
    HM60X110T

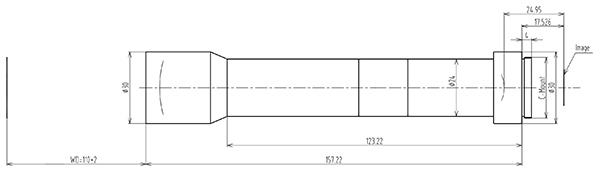

    ※ Dimension


    ※ Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.

    Model

    HM60X110T

    Max Image Size

    2/3-inch

    Magnification

    6 X

    WD (mm)

    110

    Working F/#

    35

    Object NA(mm)

    0.085

    Depth of field(mm)

    0.11

    Distortion

    <0.02%

    Resolution

    4μ

    FOV（WxH）(mm)

    2/3"(8.8x6.6)

    1.5x1.1

    1/1.8"(7.13x5.37)

    1.2x0.9

    1/2"(6.4x4.8)

    1.1x0.8

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    169.1mm

    HM60X110T specification
