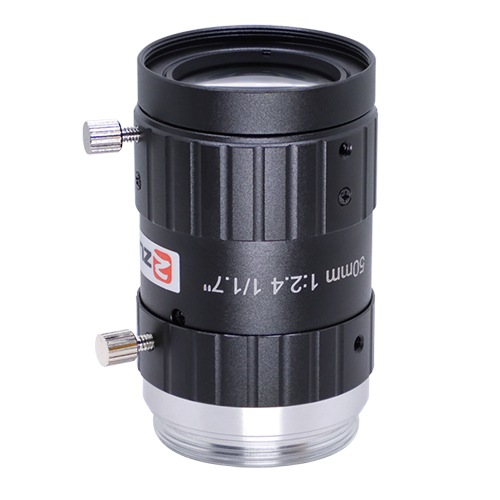

12MP 50mm FA lens C Mount |
Working Distance |
Optical Magnification |
1/1.7"Field of View(7.4*5.6mm) |
|||
Model |
VM5024MP12 |
mm |
X |
H |
V |
|
Image Size |
1/1.7-inch |
5000 |
0.010X |
740.0 |
560.0 |
|
Focal length |
50mm |
2000 |
0.025X |
296.0 |
224.0 |
|
F No. |
F2.4-16 |
1000 |
0.050X |
148.0 |
112.4 |
|
M.O.D(m) |
0.3-Inf. |
900 |
0.056X |
132.1 |
100.4 |
|
Operation |
Iris |
Manual |
800 |
0.064X |
115.6 |
87.8 |
Focus |
Manual |
700 |
0.073X |
100.8 |
76.6 |
|
Horizontal Angle of View (D×H×V) |
1/1.7" |
10.6°×8.5°×6.4° |
600 |
0.086X |
86.0 |
65.3 |
1/2" |
10.1°×8.5°×5.6° |
550 |
0.095X |
77.9 |
59.2 |
|
1/3" |
9.1°×7.3°×5.5° |
500 |
0.105X |
70.5 |
53.5 |
|
Distortion |
<0.03% |
450 |
0.118X |
62.7 |
47.6 |
|
BFL |
23.812mm |
400 |
0.134X |
55.2 |
41.9 |
|
Flange BFL |
17.526mm |
350 |
0.156X |
47.4 |
36.0 |
|
Mount |
C-Mount |
300 |
0.186X |
39.5 |
30.2 |
|
Dimension |
Φ29×43.89mm |
- |
- |
- |
- |
|
Weight |
68.8g |
- |
- |
- |
- |
|
Filter Thread |
M27xP0.5 |
- |
- |
- |
- |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
