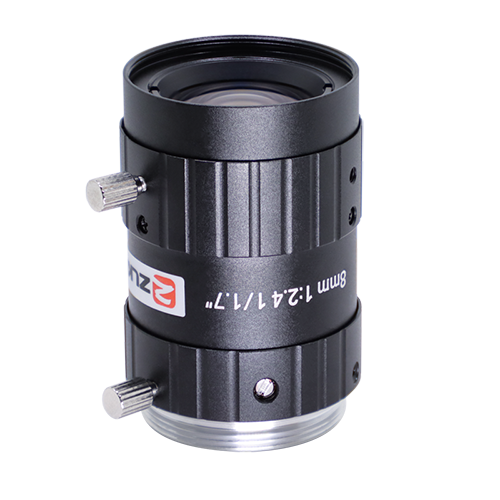

12MP 8mm FA lens C Mount |
Working Distance |
Optical Magnification |
1/1.7"Field of View(7.4*5.6mm) |
|||
Model |
VM0824MP12 |
mm |
X |
H |
V |
|
Image Size |
1/1.7-inch |
5000 |
0.002X |
4679.6 |
3535.7 |
|
Focal length |
8mm |
2000 |
0.004X |
1878.0 |
1418.9 |
|
F No. |
F2.4-16 |
1000 |
0.008X |
944.1 |
713.3 |
|
M.O.D(m) |
0.12-Inf. |
900 |
0.009X |
850.7 |
642.7 |
|
Operation |
Iris |
Manual |
800 |
0.010X |
757.3 |
572.2 |
Focus |
Manual |
700 |
0.011X |
663.9 |
501.6 |
|
Horizontal Angle of View (D×H×V) |
1/1.7" |
60.23°×49.65°×38.58° |
600 |
0.013X |
570.5 |
431.0 |
1/2" |
53.25°×43.71°×33.48° |
550 |
0.014X |
523.8 |
395.8 |
|
1/3" |
41.17°×33.45°×25.40° |
500 |
0.016X |
477.1 |
360.5 |
|
Distortion |
<0.1% |
450 |
0.017X |
430.4 |
325.2 |
|
BFL |
11.6mm |
400 |
0.019X |
383.7 |
289.9 |
|
Flange BFL |
17.526mm |
350 |
0.022X |
337.0 |
254.6 |
|
Mount |
C-Mount |
300 |
0.026X |
290.3 |
219.3 |
|
Dimension |
Φ29×39.93mm |
250 |
0.031X |
243.6 |
192.0 |
|
Weight |
62.0g |
200 |
0.038X |
196.9 |
148.7 |
|
Filter Thread |
M27xP0.5 |
150 |
0.050X |
150.1 |
113.4 |
|
Working Temperature |
-20ºC ~ +60ºC |
120 |
0.061X |
122.1 |
92.2 |
