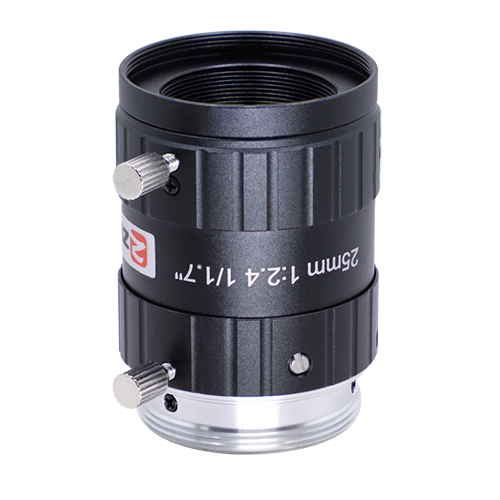

12MP 25mm FA lens C Mount |
Working Distance |
Optical Magnification |
1/1.7"Field of View(7.4*5.6mm) |
|||
Model |
VM2524MP12 |
mm |
X |
H |
V |
|
Image Size |
1/1.7-inch |
5000 |
0.005X |
1480.0 |
1120.0 |
|
Focal length |
25mm |
2000 |
0.013X |
569.2 |
430.8 |
|
F No. |
F2.4-16 |
1000 |
0.025X |
296.0 |
224.0 |
|
M.O.D(m) |
0.1-Inf. |
900 |
0.028X |
264.3 |
200.0 |
|
Operation |
Iris |
Manual |
800 |
0.032X |
231.3 |
175.0 |
Focus |
Manual |
700 |
0.036X |
205.6 |
155.6 |
|
Horizontal Angle of View (D×H×V) |
1/1.7" |
21.2°×16.8°×12.8° |
600 |
0.043X |
172.1 |
130.2 |
1/2" |
18.3°×14.6°×11.0° |
550 |
0.047X |
157.4 |
119.1 |
|
1/3" |
13.7°×11.0°×8.3° |
500 |
0.051X |
145.1 |
109.8 |
|
Distortion |
<0.1% |
450 |
0.057X |
129.8 |
98.2 |
|
BFL |
12.05mm |
400 |
0.065X |
113.8 |
86.2 |
|
Flange BFL |
17.526mm |
350 |
0.074X |
100.0 |
75.7 |
|
Mount |
C-Mount |
300 |
0.088X |
84.1 |
63.6 |
|
Dimension |
Φ29×34.3mm |
250 |
0.106X |
69.8 |
52.8 |
|
Weight |
55.7g |
200 |
0.135X |
54.8 |
41.5 |
|
Filter Thread |
M27xP0.5 |
150 |
0.184X |
40.2 |
30.4 |
|
Working Temperature |
-20ºC ~ +60ºC |
100 |
0.288X |
25.7 |
19.4 |
