1200万像素F5.6 25mm镜头M12

物距Working Distance

倍率Magnification

视野 1/1.7"Field of View(mm)

型号Model

MTV25MP12D

mm

-

H

V

像机尺寸Image Size

1/1.7-inch

1000

0.0253X

300.25

225.28

焦距Focal length

25mm

900

0.0280X

271.18

203.45

光圈范围F No.

F5.6

800

0.0314X

242.33

181.79

最短物距M.O.D(m)

0.1-Inf.

700

0.0357X

213.17

159.90

控制方式Operation

Iris

Fix固定

650

0.0383X

198.62

148.97

Focus

Manual手动调整

600

0.0413X

184.03

138.02

视场角

Angle of View (D×H×V)

1/1.7"

18.96°×11.9°×7.98°

550

0.0449X

169.41

127.04

畸变Distortion

<0.12%

500

0.0492X

154.75

116.03

光学后焦BFL

6.527mm

450

0.0543X

140.03

104.98

机械后焦MBF

5.0mm

400

0.0608X

125.24

93.89

接口Mount

M12XP0.5

350

0.0690X

110.37

82.72

主光束入射角CRA

≤12.74°

300

0.0799X

95.37

71.48

分辨率Resolusion

12MP

250

0.0950X

80.22

60.11

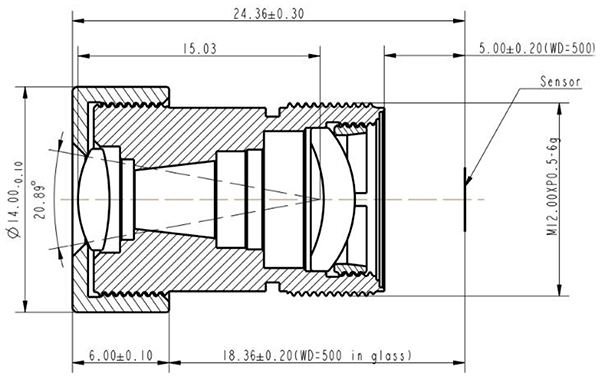

外形尺寸Dimension

Φ14×19.36mm

200

0.1176X

64.82

48.56

结构Structure

5G

150

0.1840X

40.2

30.4

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.2880X

25.7

19.4
