1200万像素F5.6 8mm镜头M12

物距Working Distance

倍率Magnification

视野 1/1.7"Field of View(mm)

型号Model

MTV08MP12D

mm

-

H

V

像机尺寸Image Size

1/1.7-inch

1000

0.0081X

938.03

704.94

焦距Focal length

8mm

900

0.0090X

845.85

635.60

光圈范围F No.

F5.6

800

0.0101X

753.67

566.26

最短物距M.O.D(m)

0.2-Inf.

700

0.0115X

661.49

496.92

控制方式Operation

Iris

Fix固定

650

0.0124X

615.40

462.25

Focus

Manual手动调整

600

0.0134X

569.30

427.58

视场角

Angle of View (D×H×V)

1/1.7"

60.3°×49.3°×37.98°

550

0.0145X

523.21

392.91

畸变Distortion

<0.37%

500

0.0160X

477.11

358.24

光学后焦BFL

7.80mm

450

0.0177X

431.02

323.57

机械后焦MBF

6.37mm

400

0.0198X

384.92

288.89

接口Mount

M12XP0.5

350

0.0225X

338.82

254.22

主光束入射角CRA

≤18°

300

0.0261X

292.71

219.54

分辨率Resolusion

12MP

250

0.0310X

246.60

184.86

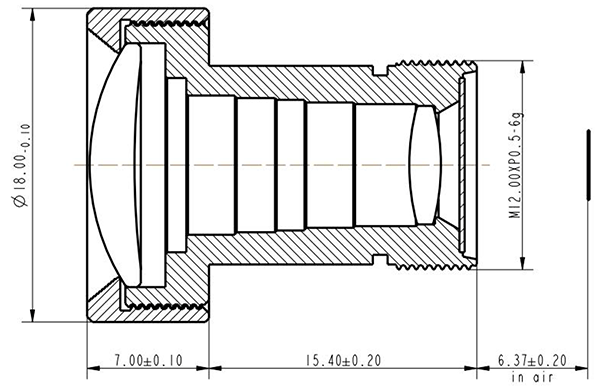

外形尺寸Dimension

Φ18×22.4mm

200

0.0382X

200.48

150.17

结构Structure

10G

150

0.0497X

154.33

115.47

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.0712X

108.14

80.74
